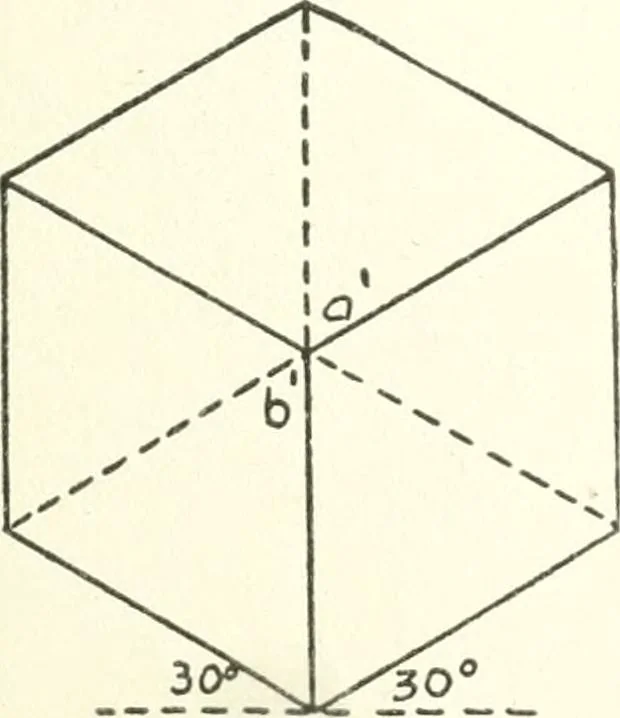

g. 78, an isometric drawing;and Fig. 79, an oblique projection. In all three MECHANICAL DRAFTING 137 views, the vertical edges of the cabin are drawnas vertical lines, and therefore parallel. In Figs. 78 and 79, all the other lines andedges which are actually parallel in space aredrawn as parallel…
