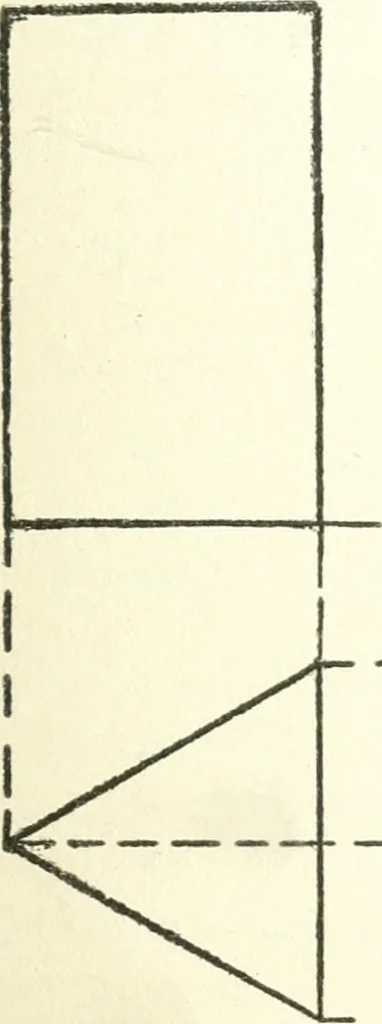

lower end and the under side are invisible. 65. Third Plane of Projection or ProfilePlane. Many times, the two views of an objectas plan and elevation, are sufficient to describe MECHANICAL DRAFTING 65 the object completely; but in other cases a thirdview is required to give a satisfactory idea of…
