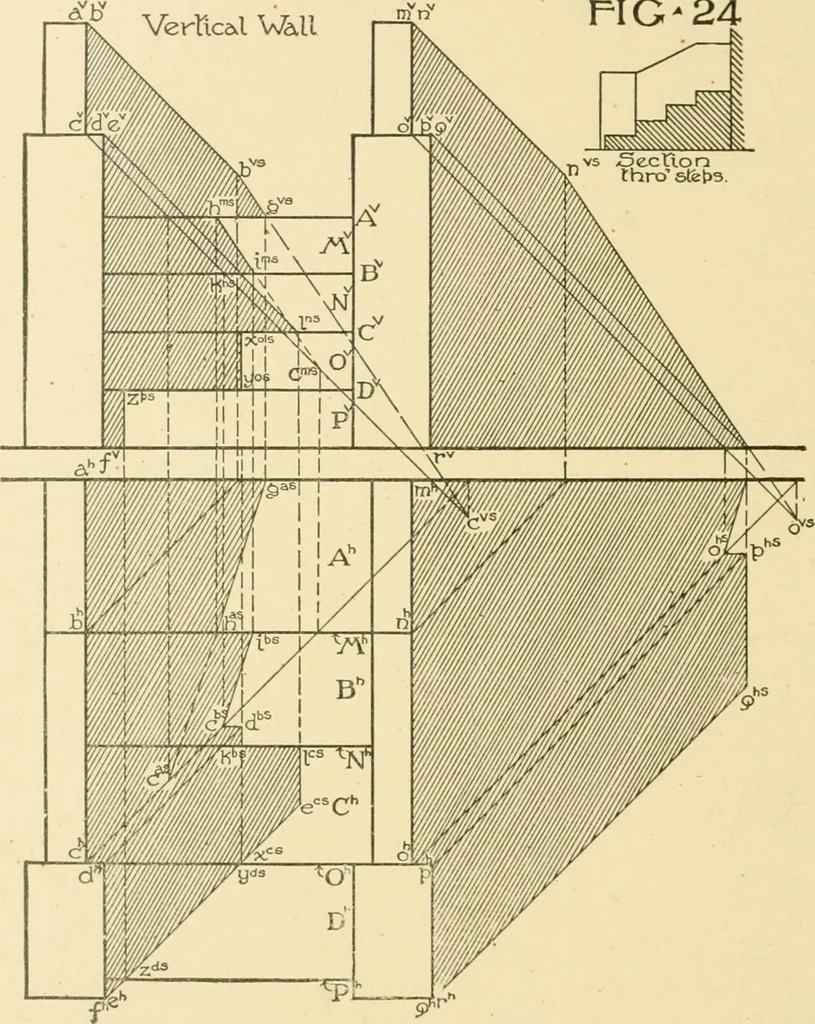

re in shade. This is true of both rails; there-fore, in one case we must find the shadow of a broken line, ahedefon the vertical wall and on the steps, and then find the shadow of 189 20 SHADES AND SHADOWS the broken line innojpqr on the vertical wall and on the ground. 5G, Beo-innino; with the… … 45 line, the point If^ being found by Problem I. Tli« shadowof hf^ the sloping part of the rail, will fall partly on the verticalwall and partly on the treads and risers. We have already foundthe shadow of the end i on V in the point h^^. The shadow of c 100 SHADES AND SHADOWS 21 on V, found by…
