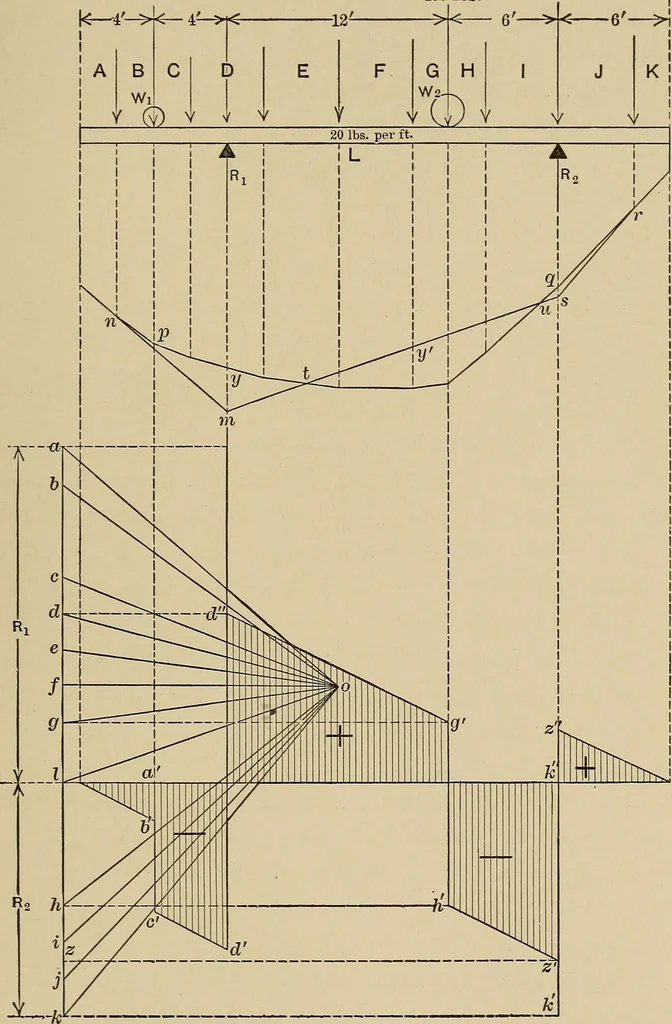

a pole 0 distant1.5 inches from the load line, so that the polar distance willrepresent 600 pounds. We shall then have: jV inch = i foot X600 = 600 pounds-feet, or ^V inch = 100 pounds-feet, for thebending-moment scale. Draw the vectors of the force polygon. From some point min the Hne of action of… … Fig. 132 THE ELEMENTS OF MECHANICS OF MATERIALS the line of action of BC, or of Wi. Draw parallels to the othervectors as shown. The member qr, parallel to oj^ intersects theline of action of JK at r. The parallel to ok through r intersectsthe line of action of R2 at s. The closing member is, then,…
