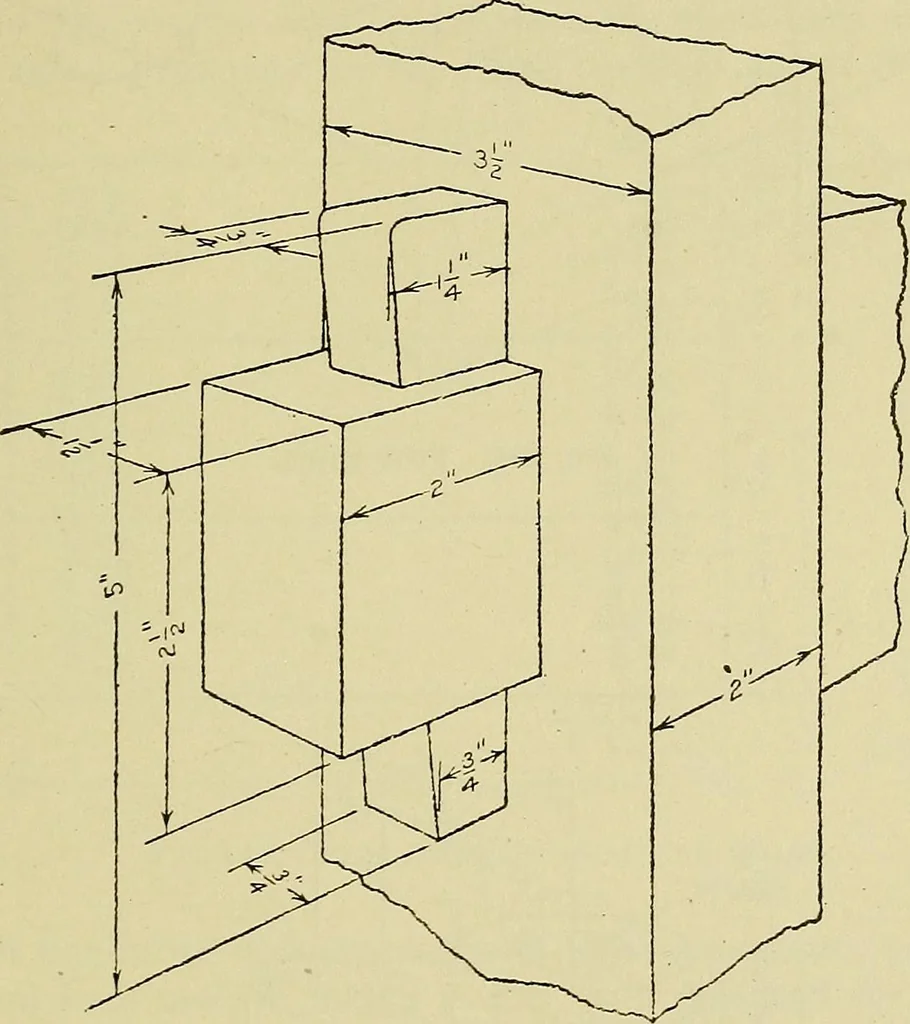

rspective sketch, Fig. 163.Bequired: 1. To make an orthographic sketch of the object shown inFig. 163. 2, To make a pencil mechanical drawing from the ortho-graphic sketch. Given: A perspective sketch, Fig. 164. PENCIL MECHANICAL DRAWING 157 Required: 1. To make an orthographic sketch of the object… … Fig. 163. Keyed Mortise and Tenon 2. To make a pencil mechanical drawing from the ortho-graphic sketch. 158 MECHANICAL DRAWING
