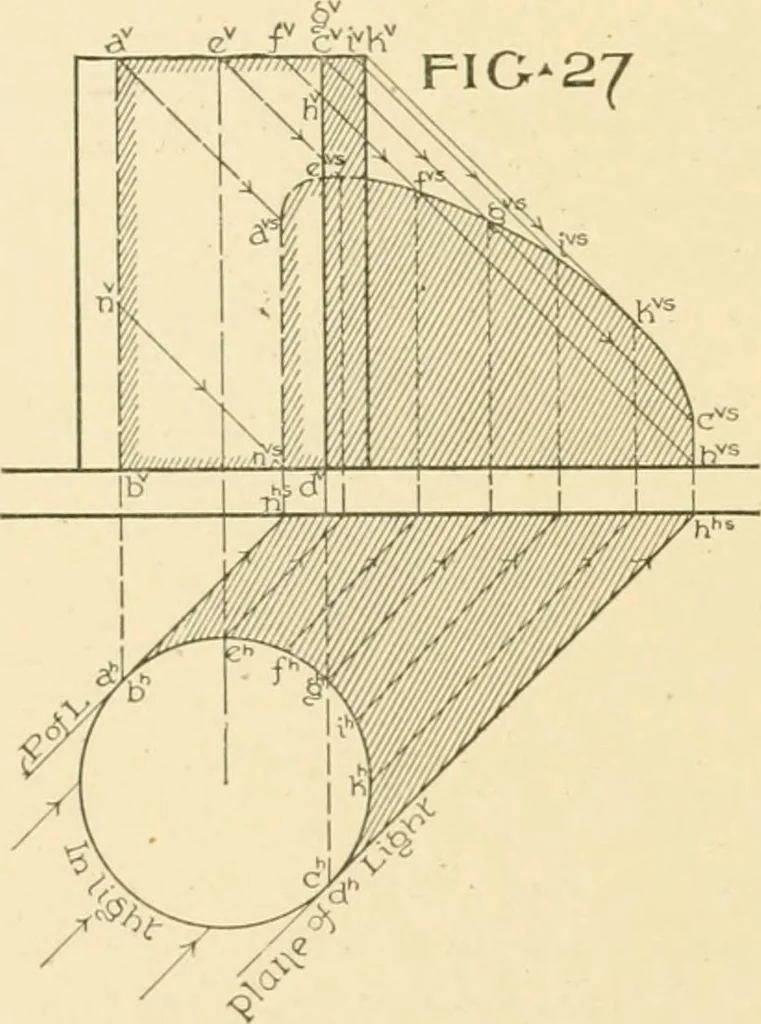

hadow of anoblique cylinder. In Fig. 28 is show n the planand elevation of an oblique cylin-der whose vertical section is a circle. G8. Unlike the right cylinder we cannoi apply to the planor elevation the projections of the ray and determine at once thelocation of the shade elements. To find the… … 194 SHADES AND.SHADOWS 25 00. In Fig. 28 the top and base of the oblique cylinder liavebeen assumed, for convenience, parallel to one of the co-ordinateplanes. The shadow of the cylinder will contain the shadows ofthe top and base, hence if we find their shadows and draw straightlines tangent to…
