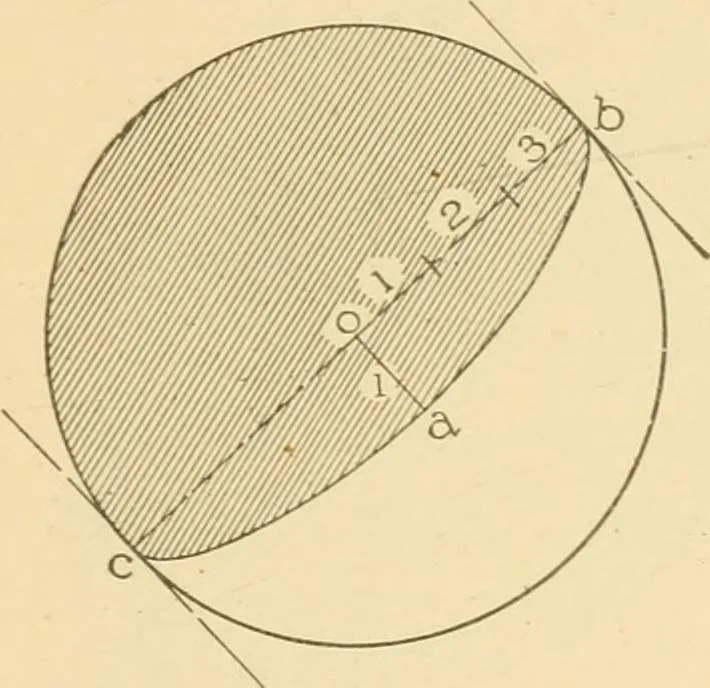

cle. The semi minor axis and two other points cair be deter-mined as follows : Through the points. A, o, and B, draw vertical and horizon-tal lines, intersecting in the points E and D. The points E and D are two points in the required shade line. Through the point E draw the 45^ line EF. Through… … 213 44 SHADES AND SHADOWS minor axis. The shadow of the sphere on the co-ordinate plane willalso be an ellipse. The center of this ellipse, o% will be the shadowof the center of the sphere. It will be determined by ProblemXYII. The ends of the major axis MN, will be on the projection ofthe ray of…
