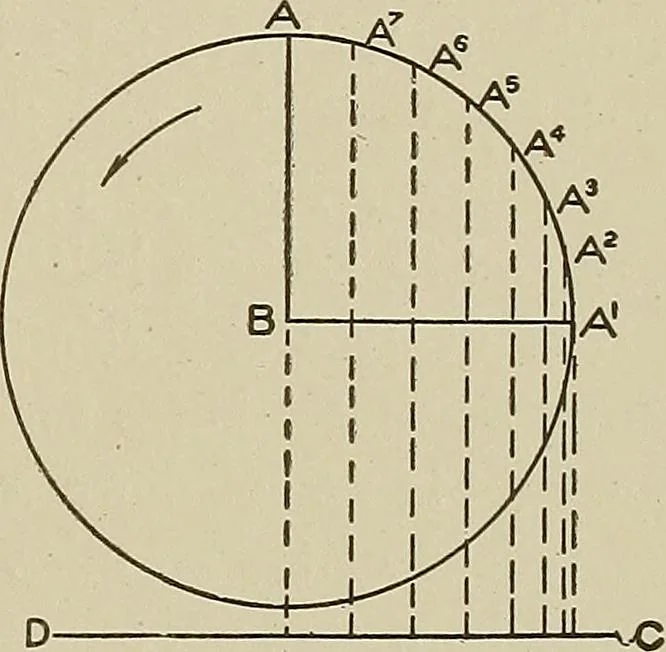

of the base.For this reason the pulley M^ is raised ever decreasing distances asthe carriage moves in, controlled by the differential pitch of the screw,thus unwinding less chain at each draw. After the base of the bobbin has been formed and M^ has beenwound to the top of the screw M^ the quadrant… … Fig. 164. essary. . When the mule backs-off theyarn is unwound to the top of thecone of yarn, the winding faller de-scends to this point, the quadrant be-ing clear back. When the carriagecommences to run in, the quadrantrevolves toward the retreating carriage, the winding faller mean-while…
