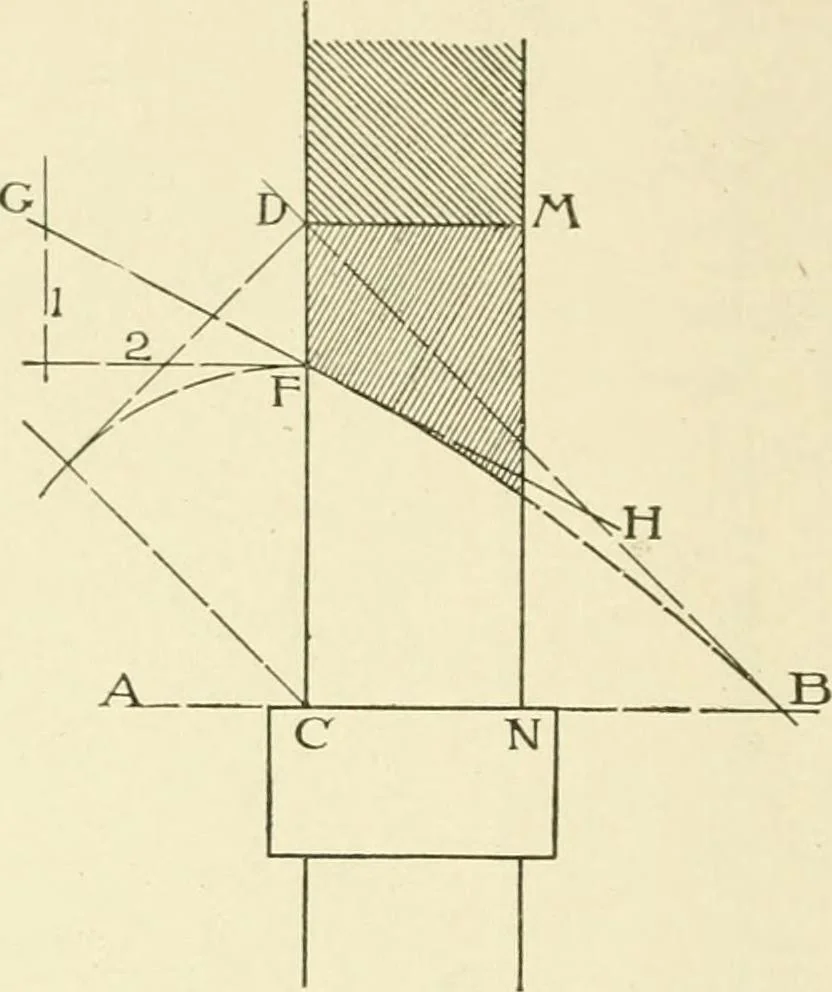

Locate the point o on the axis 1^ inches below cCh^. With 211 42 SHADES AND SHADOWS … ^ as a center, and radius equal to g inch describe the arc mnj)^ the required shadow. 93. Problem XXVI. To con= riG-48 struct the shadow of a verti= cal line on a series of mould= ings which are parallel to the ground line. The shadow reproduces the actual profile of the mouldings.Given a vertical…
