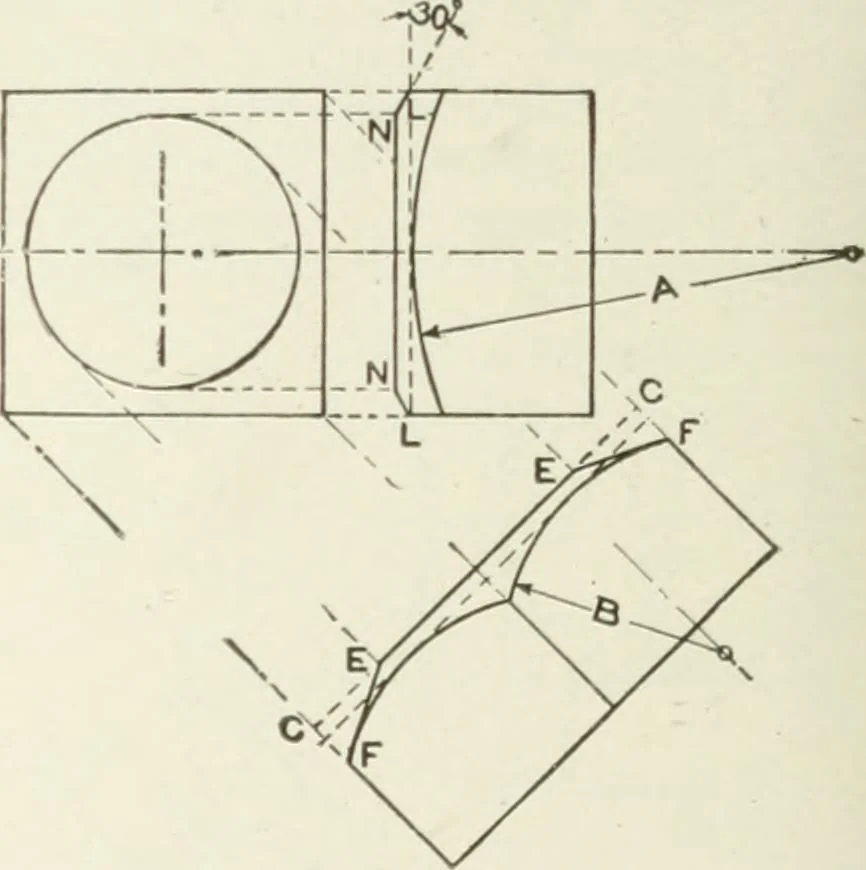

n drawn as explained for Fig. 41. Referring again to Fig. 35, the dimension which shows thelength of the holt under the head should he given to the extremepoint of the bolt, as should also the dimension which shows howmuch of the bolt is threaded. Most of the bolts in common use are made of… … Fig. 4ii. draftsman wishes to use has these standard dimensions they maybe omitted from the drawing and a note made that the bolt isstandard. Then the only dimensions necessary to be given are thediameter, the length under the head, and the length of the threadedpart. The following tables give the…
