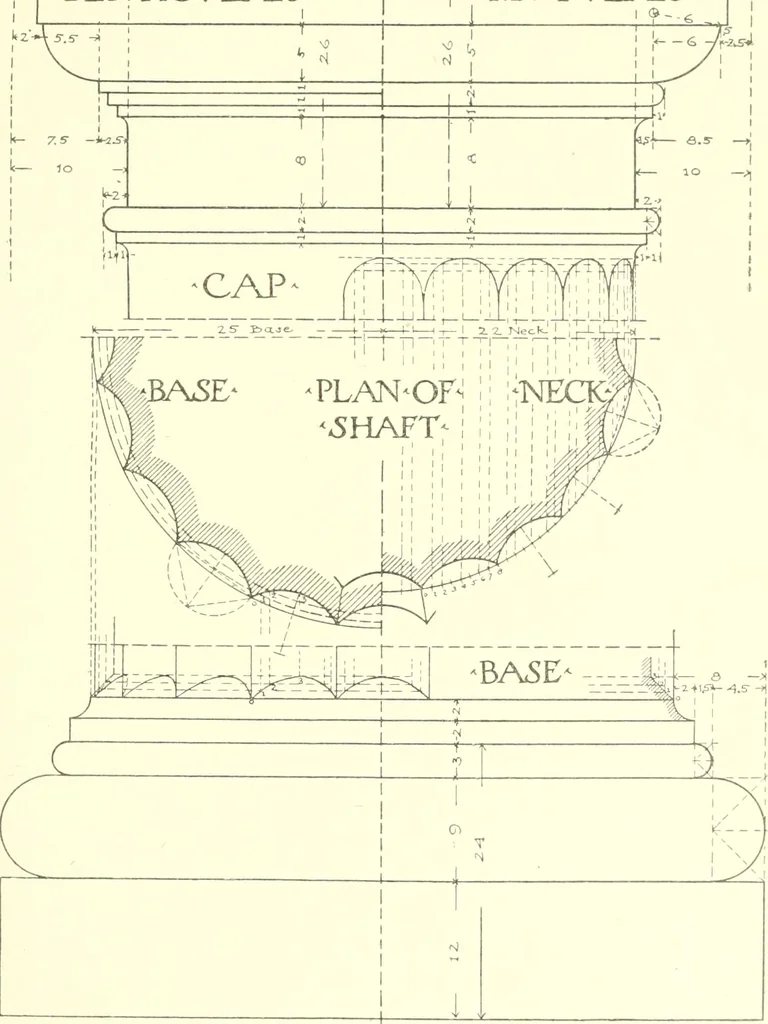

circle. 52. The head or upper part of each channel is a semi-circle, while the foot rests on a plane inclined at forty-five degrees.In drawing a channeled column there is but one channelseen in direct front elevation, the others follow the curvature ofthe shaft, and are drawn according to their… … DENTICVLAR.^ Oa£ J-lalf Em. ^MVTVLAR^ \Li^LA^j:i 111 Ti 11 iVi I I i^r, I I i?i^, 11 iVi 11 .y, 11 ,Ti 11 i^i^i I I i^r PLATE III. (A reproduction at small size of Portfolio Plato III.) I ^ THE ROMAN ORDERS 17 Thus, to obtain the curves formed by the heads of the channelsdraw (in elevation) the…
