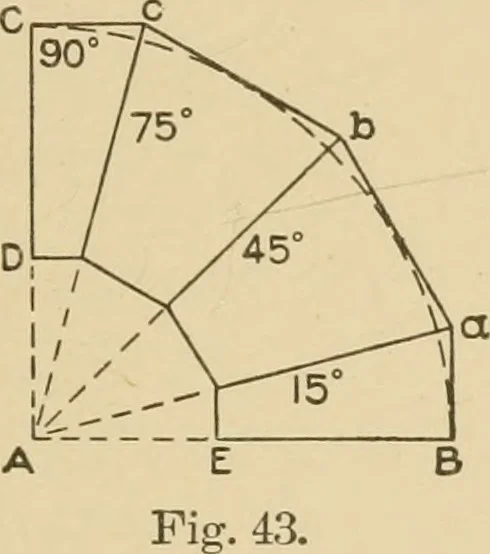

tangle. From A draw the miter line A « at an angle of 45 to thebase line A B. Then i^arallel to A B and A C and tangent to thequadrant at C and B draw lines to intersect the miter line, asshown. Knowing the diameter of the j)ipe as C D or E B drawlines parallel to the arms of the pipe, as shown.…
