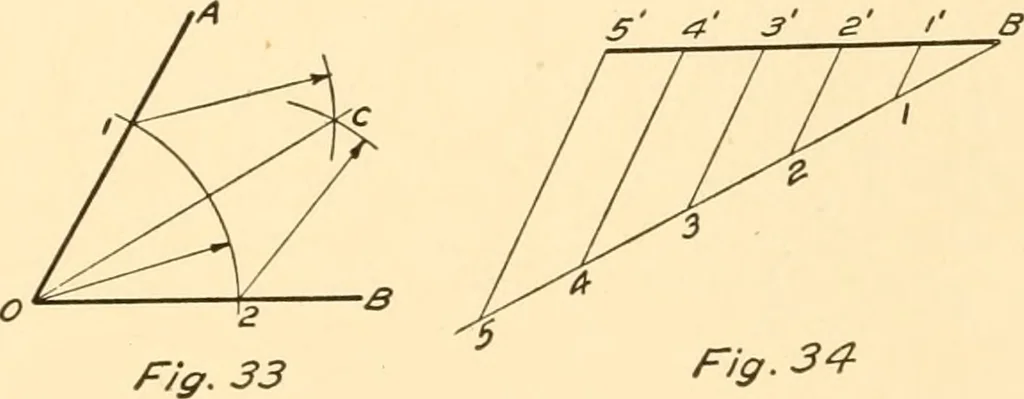

e ^ Fig. 3 2 Given the line 5J5. It is required to divide the line into fiveequal parts. From one end of the line draw another line, makingan angle with it, such as 55. On 55, using any convenientsetting of the dividers, step off five equal spaces. Join the endof the last space with the end of the… … Fig. 34
