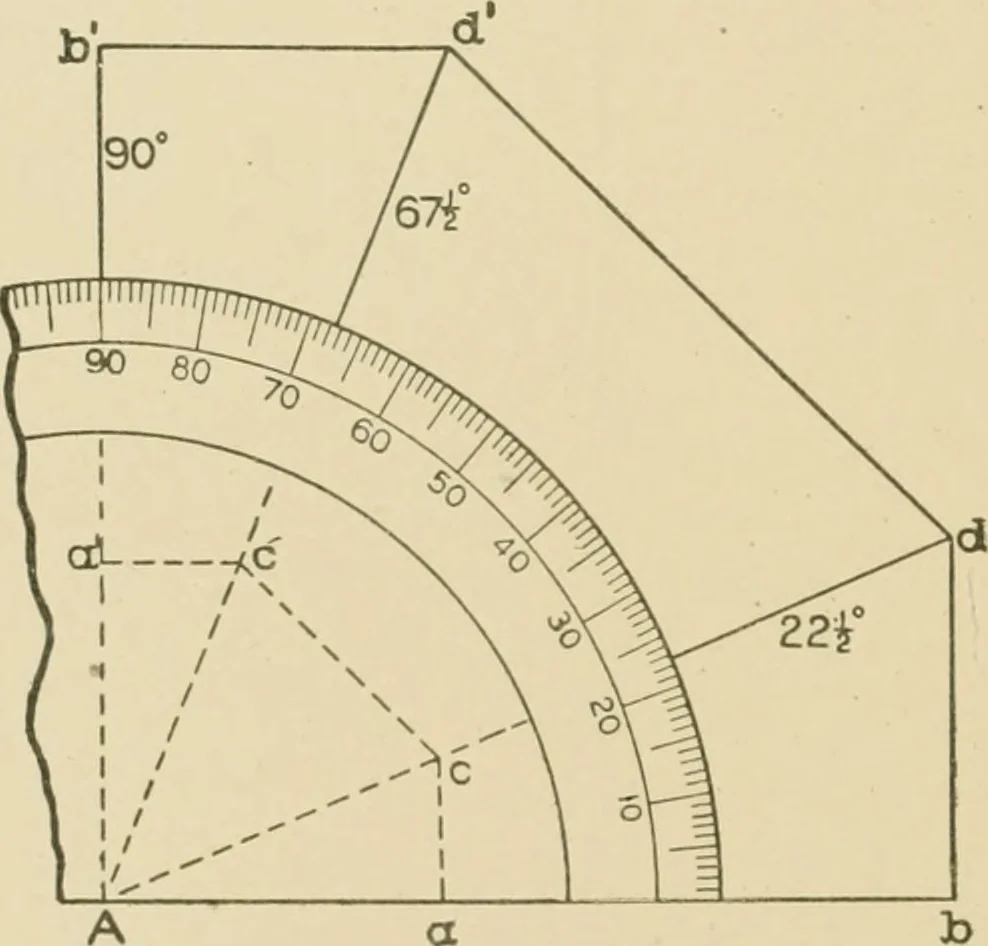

draw lines throughFig. 45. ^ 22 J °, and 67^°. Now set otf A a, and the diameter of the pipe ah. Draw vertical linesfrom a and h to the miter line at c and d. Lay off similar distancesfrom A to a to h and draw horizontal lines intersecting the 67^°miter line at c and d. Then draw the lines d d and… … 106
