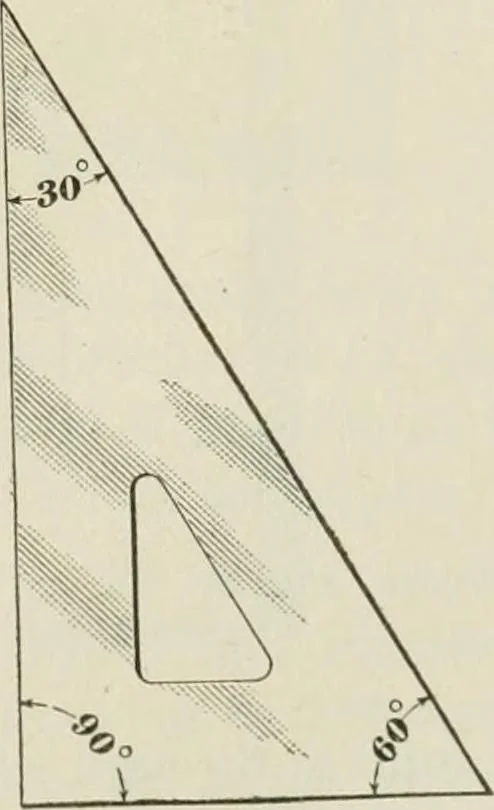

Fig. 19 Fig. 20 Fig. 19 has two angles of 45° each, and that in Fig. 20 oneof 60° and one of 30°. They are called 4^° and 60 triangles, 8 GEOMETRICAL DRAWING §1 respectively. To draw a vertical line, place the T square inposition to draw a horizontal line, and lay the triangleagainst it, so as to…
