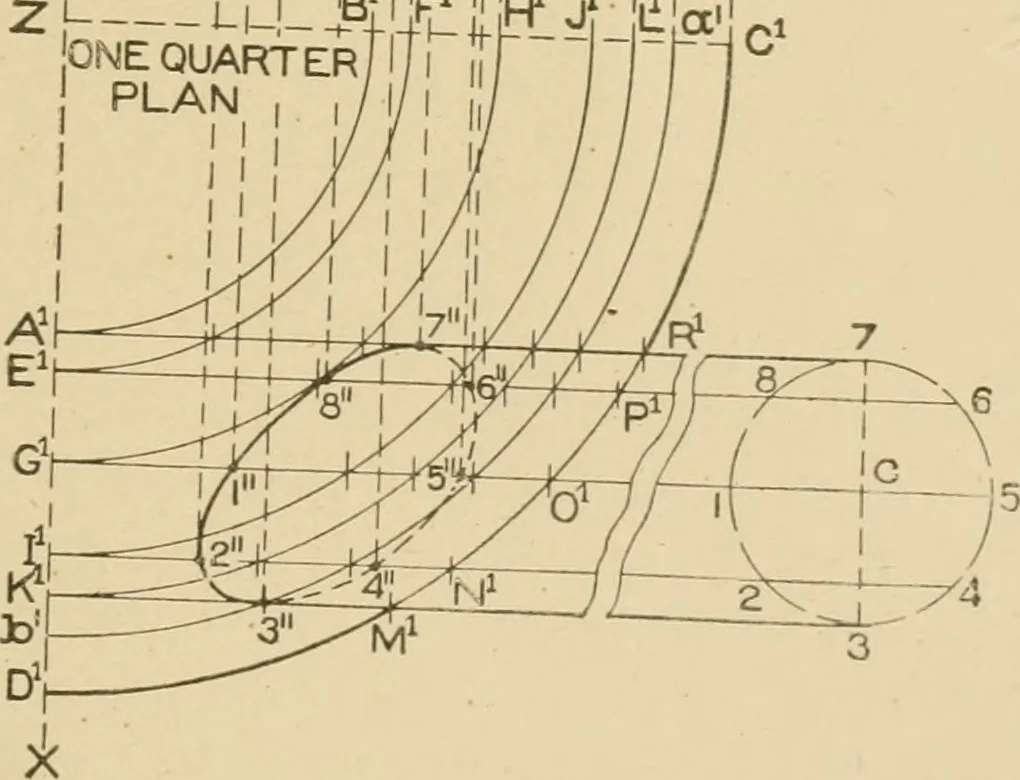

ONE HALFxi ^ELEVATION ^ … Fig. 111. 173 102 SHEET METAL WORK at 3. Through 3 draw the horizontal line intersecting the centerline at K, the outer arc at M and extend it indefinitely to 3,From 3 erect the perpendicular equal to the diameter of the cylin-der, or 1| inches, bisect it and obtain the center c. Using e ascenter…
