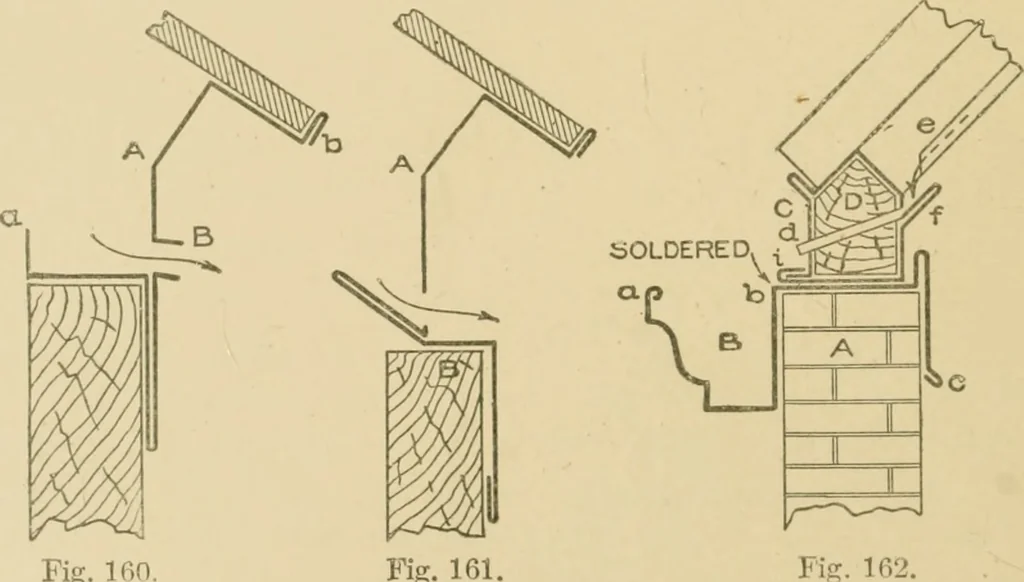

Fig. 157. Fig. 158. Fig. 159. of angle iron shown at A. In this case the curb is slightly changedas shown at B; bent in one piece, and riveted at C. In Figs. IGO, 161,and 1G2 are shown various shapes of curbs for pitched skylights inaddition to that shown in Fig. 149. A in Fig. 160 shows a curb… … Fig. 160. Fig. 161. In Fig. 161 is shown a slightly modified shape A, with an offset torest on the cm-b at B. Wlien a skylight is to be placed over an openingwhose walls are brick, a gutter is usually placed around tlie wall, as ai8
