Cyclopedia of architecture, carpentry, and building : a general reference work ... (1907)
American School of Correspondence · Chicago : American Technical Society · leaf 317

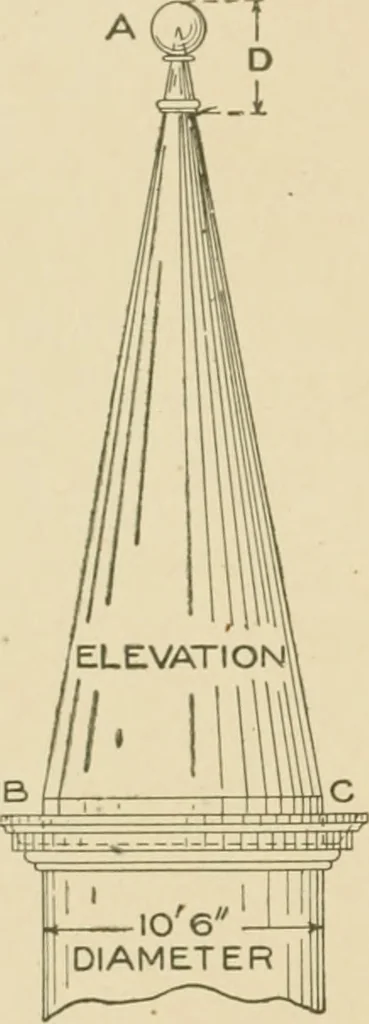

inches in succession, until the apex A is reached, leaving … Fig. 214. 254 SHEET MET.\L WORK 175 tlie last sheet at the top. to come as it may. Through the points thus obtained on A B draw Hues parallel to C D intersecting the lines A C and A D as shown. Then the various shapes marked 1 2 3 etc. will be the net patterns for similarly numbered courses. Take…
