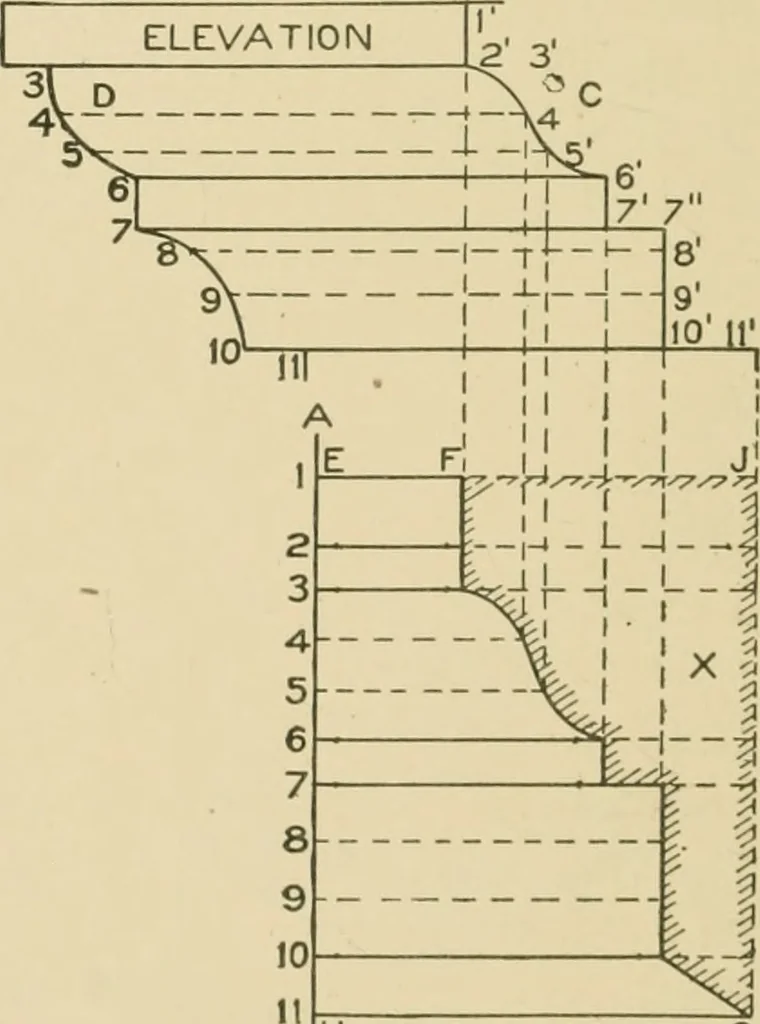

PATTFRN FOR C B Fig. 292. points indicated by the figures,draw lines, which intersect withlines drawn parallel to A B fromsimilarly numbered intersectionsin the profile D. Trace a linethrough the points thus obtained,as shown by E H. Then will EF G H be the pattern for C inelevation. To obtain the… … PATTERN FOR D ^ B Fig. 293. draw the elevation of D (Fig. 293), which is to miter at rightangles with a moulding whose profile is C. Proceed in preciselythe same manner as explained in connection with Fig. 292. Dividethe profile D in Fig. 293 into equal parts, as shown, fromwhich draw horizontal…
