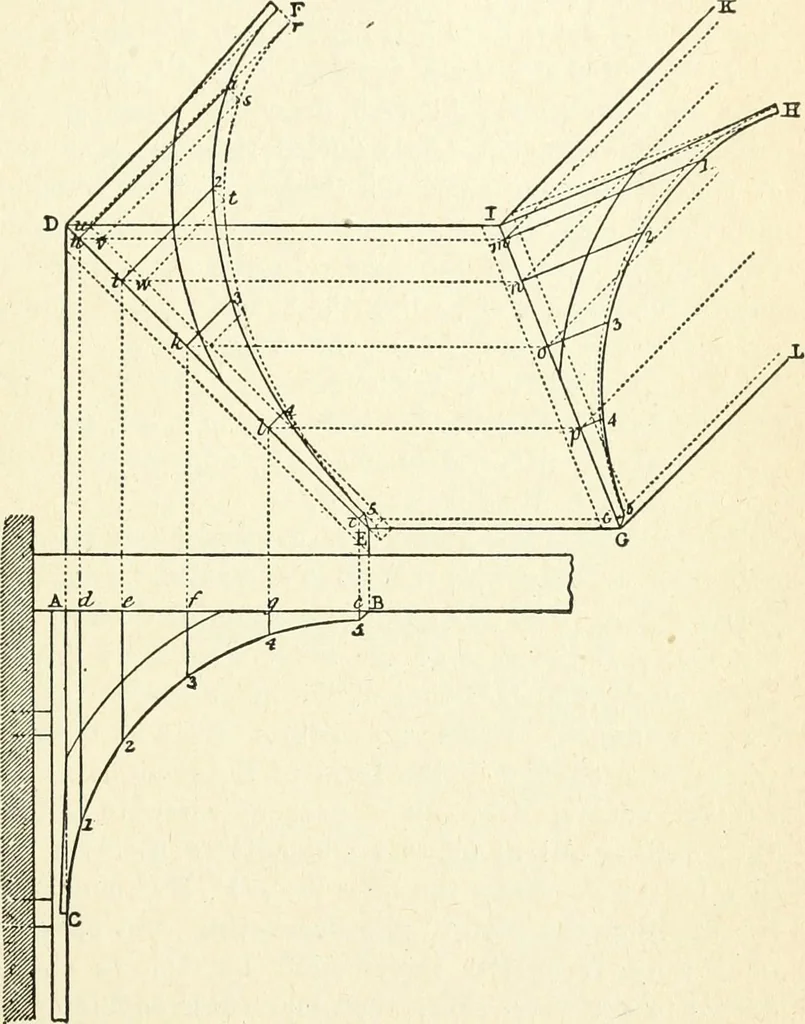

Fig. 18. a strut or dwang between the joists for the purposeof securing a gas pendant or electrolier. Let CAB (Fig, 19) be the elevation or the bracketof a core, to find the angle-bracket. PRACTICAL SOLUTIONS 153 First, when it is a mitre-bracket in an interior angle,the angle being 45°: divide the… … Fig. 19. number of equal parts 12 3 4 5, and draw through thedivisions the lines Id, 2e, 3f, 4g, 5c, perpendicular to 154 MODERN CAEPENTRY A B, and cutting it in d e f g c ; and produce them tomeet the line D E, representing the centre of the seatof the angle-bracket: and from the points of…
