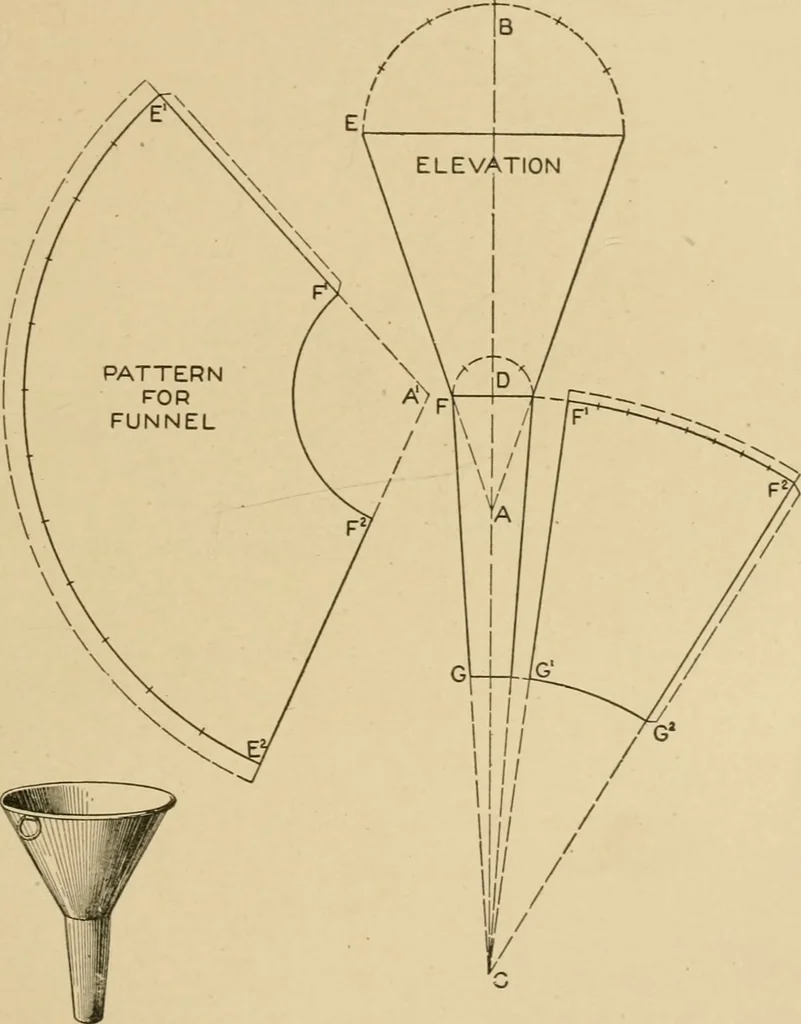

IO Watterson & Schneider, Architects, Cleveland, Ohio. Brick Used ou Exterior is McCausland Brick. Made at Akron, Ohio. Roofs Covered with ■Imptriar Red Tile. TINSMITIIING 19 Funnel and Spout. In Fig. 22 is shown a funnel and spont,which is nothing more than two frustums of cones joined… … Fig. 22. Fig. 23. line BC. Extend the contour lines until they intersect the centerline at C and A. Kow, using A^ as a center, with radii equal toAF and AE, describe the arcs FF and EE^ respectively. Onthe arc EE^ lay off twice the number of spaces contained in thesemi-circle B, then draw radial…
