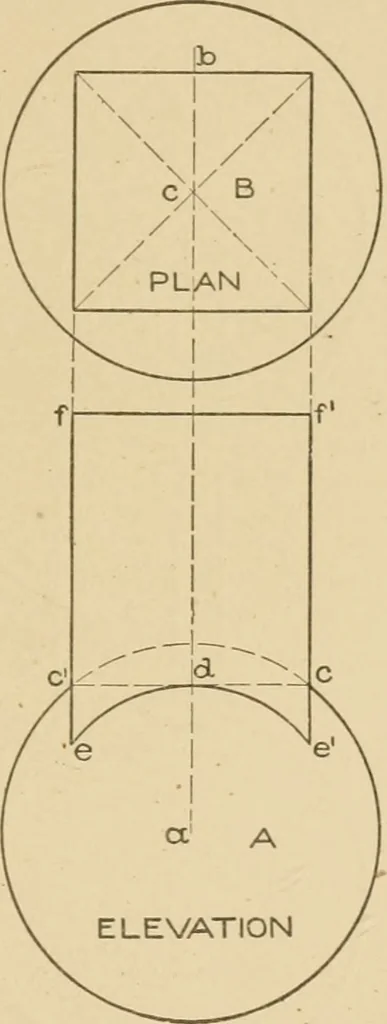

e same radius as that used for A, describe theplan B. Through c draw the two diagonals at an angle of 45°, anddraw the plan of the prism according to the measurements given.Now draw the elevation of the prismyc and/ c, the sides of theprism intersecting the sphere at c and c. From either of these… … t73 14 SHEET-METAL WORK will be the development for one of the sides of the prism. Inpractice the four sides are joined in one. Fig. 7 shows the intersection of a quadrangular prism andsphere when the center of the prism is placed to one side of thecenter of the sphere. Make the diameter of the…
