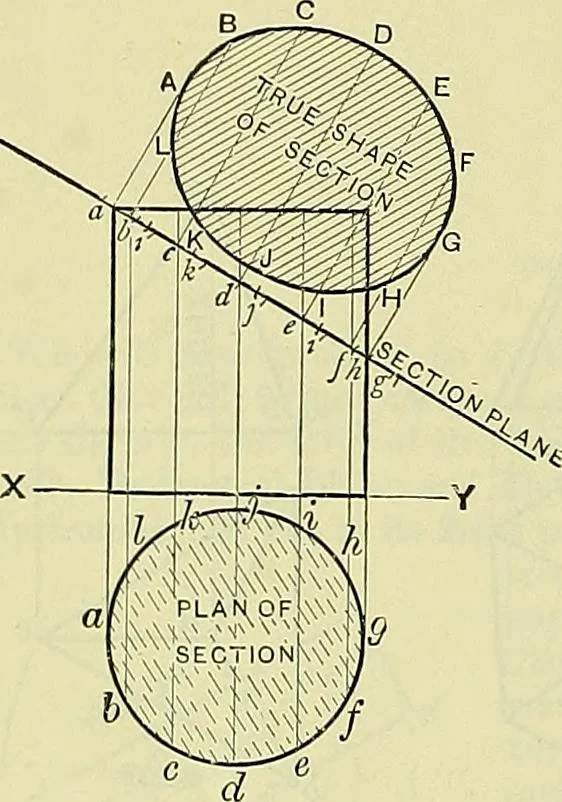

on plane, and the distance gG is marked off equal to thedistance of g from XY. Passing to the next projector, we have/% the common elevation of Fand U, and therefore the two distances/F and AH on the same line must be made equal to thedistance between / and XY, and h and XY respectively. In a… … Pig. 308.—Section giving ellipse.
