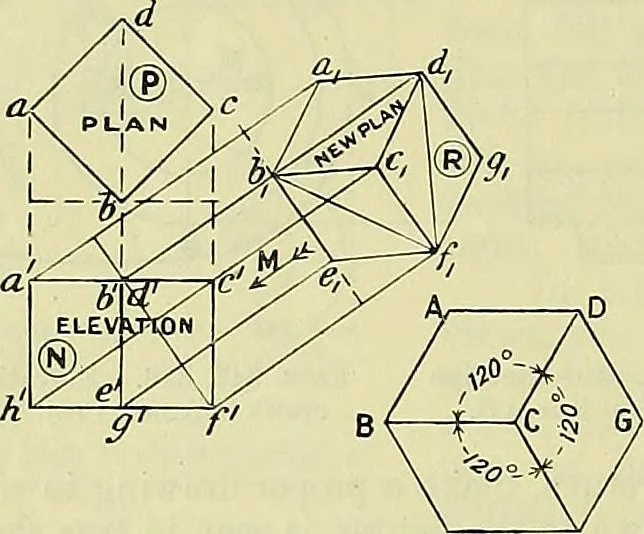

c Lines. 204. The Difference between Isometric Projection and Isometric Drawing.—Look at view N, Fig. 351. You will see that cf is the true length of the cubes edge, whilst in the new plan E the line Ci/i is its apparent length.^ Now, obviously, if cf is made 1 inch in length, Cj/i will be what we… … EiG. 350.—Pictorialdrawing of cube. Pig. 351.—Isometricprojection of cube. E F Pig. 352.—Isometricdrawing of cube. ISOMETRICAL PROJECTIONS AND DRAWINGS 117 from fc produced, and their projections on /iCj produced will give an isometric scale, which can be used in constructing anyisometric…
