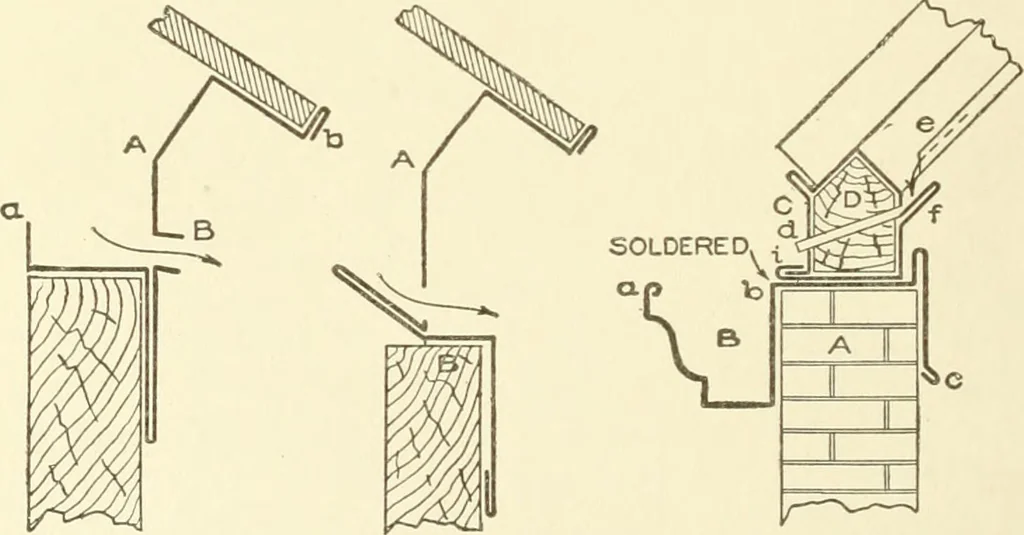

Fig. 159, of angle iron shown at A. In tliis case the cm-b is slightly changedas shown at B; bent in one piece, and riveted at C. In Figs. 100, 161,and 162 are shown various shapes of curbs for pitched skylights inaddition to that shown in Fig. 149. A in Fig. 160 shows a curb formedin one piece… … Fig. 160. Fig. 161. Fig. 162. In Fig. 161 is shown a slightly modified shape A, with an offset torest on the curb at B. Wlien a skylight Is to be placed over an openingwhose walls are brick, a gutter is usually placed around tiie wall, as 168 SHEET METAL WORK 139
