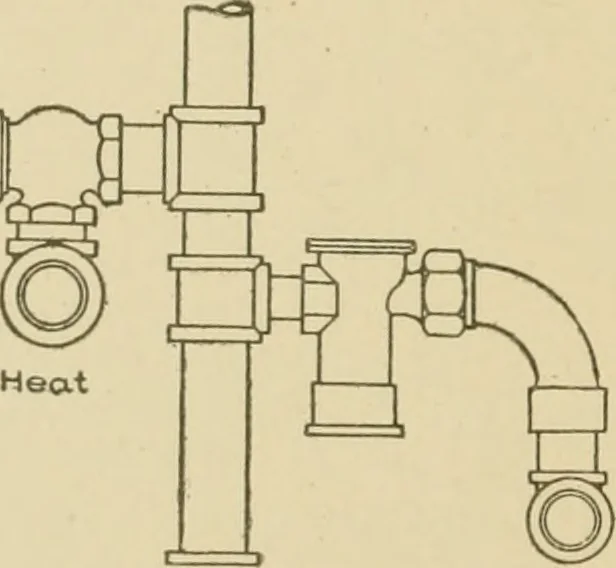

above the sealthrough the annular space betweenthe spindle B and the inside of thecentral tube G. The water ofcondensation, accumulating in theradiator or coil, passes into thechamber E, through the inlet C, rises in the chamber, and seals thespace between the seal-shell A and the sleeve of the… … DTop Leg Fig. 130. Showing Method of Draining Bottoms of Risers or Ends of Mains. 152 HEATING AND VENTILATION 143 ^Vhen all the water of condensation has been drawn out of theradiator, the seal and tube are reseated by gravity, thus closing theport K, preventing waste or loss of steam; and the…
