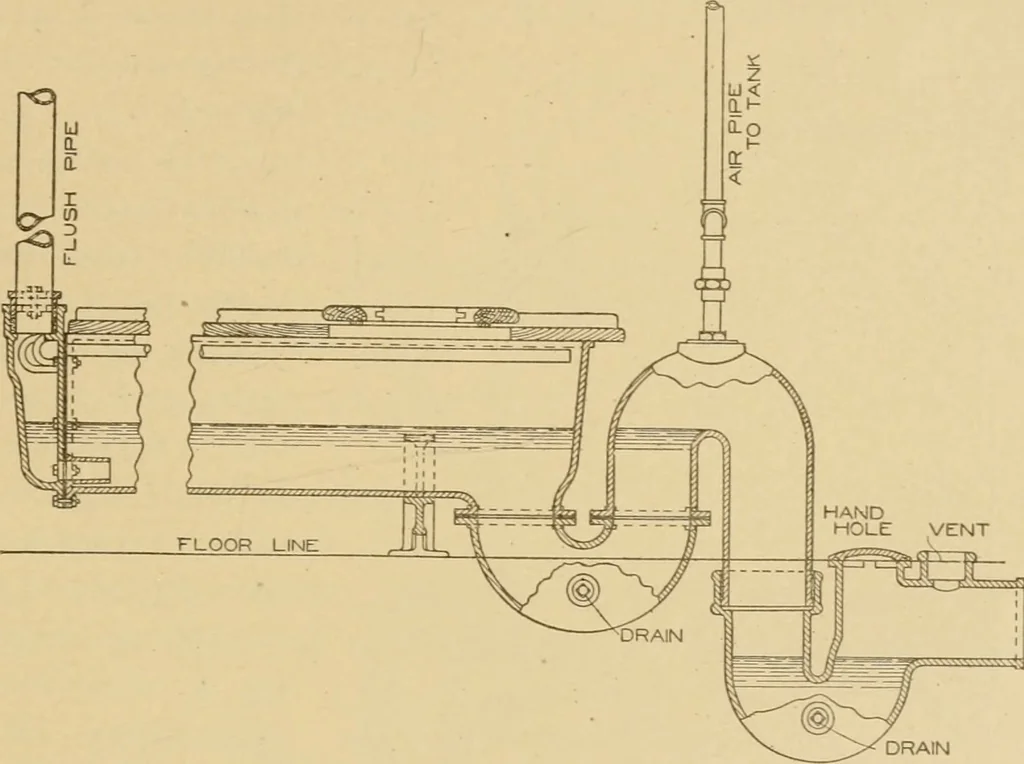

m sticking. These are opentroughs, and the plumber provides the trap. Some siphon ranges areof the open-trough pattern, but the trap or the siphon outlet is a partof the fixture. All open-trough ranges can be supplied with a venti-lating section from which a large vent pipe may be carried to a… … DRAIN Fi;^. 45. Section of Range Closet, with Double Trap and ^vith Air-Pipe to Tank to Cause Siphonic Eduction. leaving up one lid only, at the end opposite the vent pipe. Someforms, having individual flushing-rim bowls cast integral with thesection, are supplied by one general flush pipe, as…
