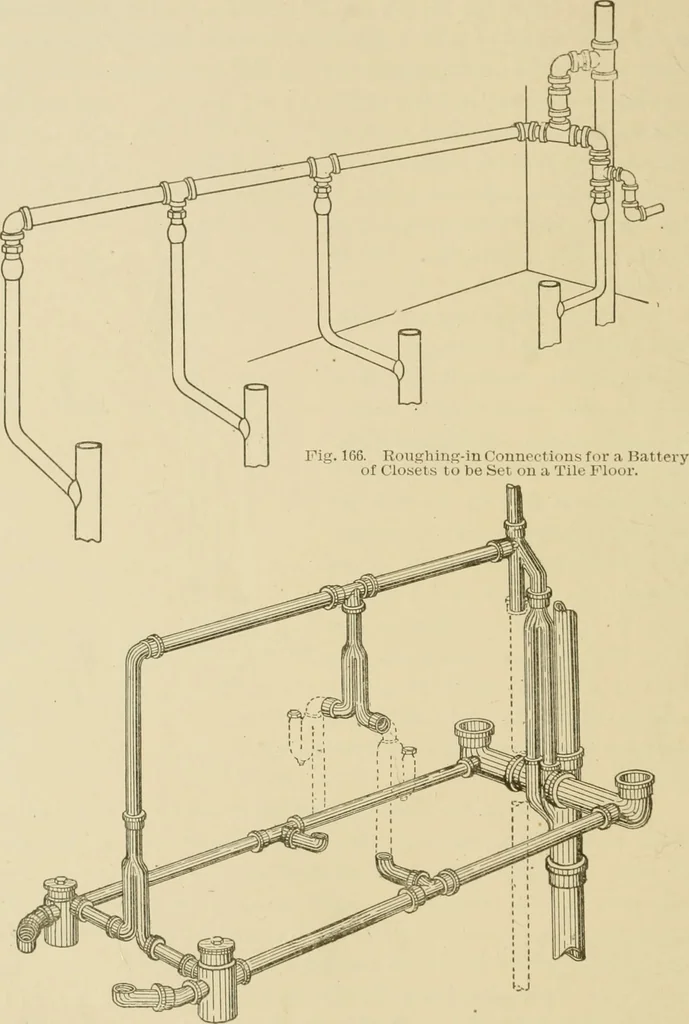

, thepipe is a waste and local vent combined, its continuation above theurinal vent connection being simply a local vent pipe, the area ofwhich being equal to the combined area of the urinal outlet and floor-slab grating, a current also passes from the urinal bowl through itsoutlet into the local… … Pig. 167. Roughing-iu for Ad.iacent Toilet-Rooms on Same Floor of Double-Flat Building. (lucing a current in the local vent stack is doing its duty. Fig. 166shows the openings left for a battery of closets that are to be set on a 858 PLUMBING 135 tile floor. The uprights connect into a branch soil…
