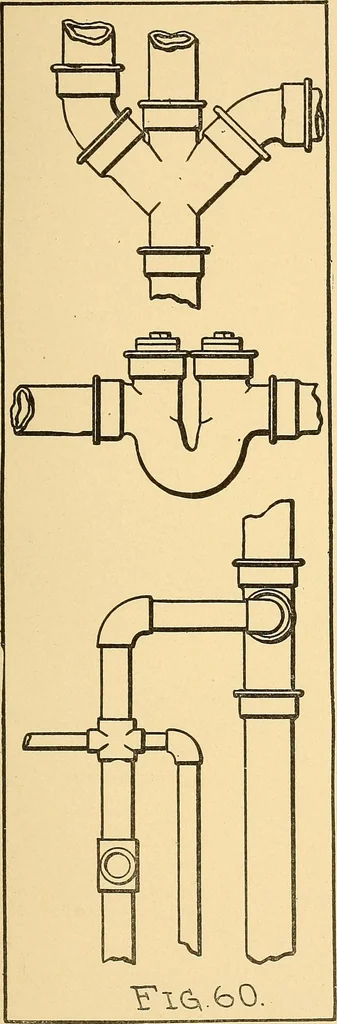

W Pre*. 58. MECHANICAL DRAWING FOR PLUMBERS 53 … method followed in Nos. 3 and 4. Compar-ing Nos. 1 and 3, it will be seen that linesshaded in the one are light in the other,also in the case of Nos. 3 and 4. In No. 1 of Fig. 59, the same difficulties or ap-parent contradictions arise that we havealready mentioned. In such a case asthis, in order…
