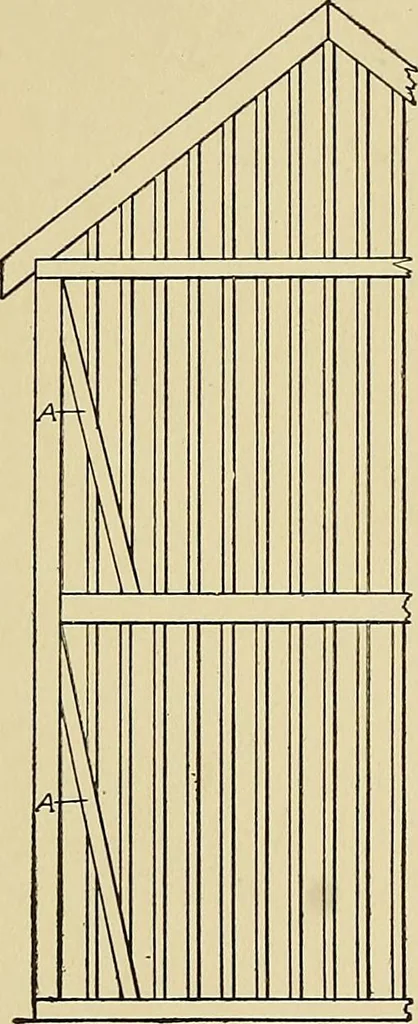

rame there are no permanent braces, but lightstrips are nailed across the corners while the framework is beingerected, and before the boarding has been put on, to keep the framein place. As soon as the outside boarding is in place these areremoved. This practice is also modified, and sometimes… … Fig. 109. Braced Frame The pin should be 92 CARPENTRY 81 sill, C the corner post, and DD are studs. In such a case everystud must be notched to receive the brace, which is really the sameas the temporary brace mentioned above, except that it is notchedinto the studs instead of being merely nailed…
