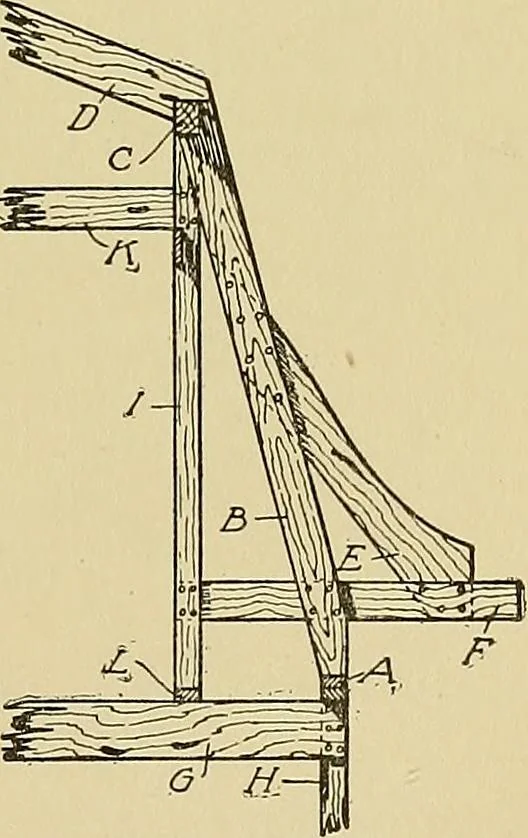

ing on the main wall plate A, we have apiece B which is inclined slightly inward, andwhich supports at its upper end a second-ary plate C. On the plate C rests the outerend of the deck rafter D which is nearlyhorizontal. The piece £ is a piece of stud-ding, 2X4 inches to 4X6 inches in… … Fig. 187. Framing forMansard Roof This member shouldwhich is usual onmansard roofs is obtained by the use of the furring piece E. Thepiece E is nailed to the upright member B at the top, and at the 141 130 CARPENTRY
