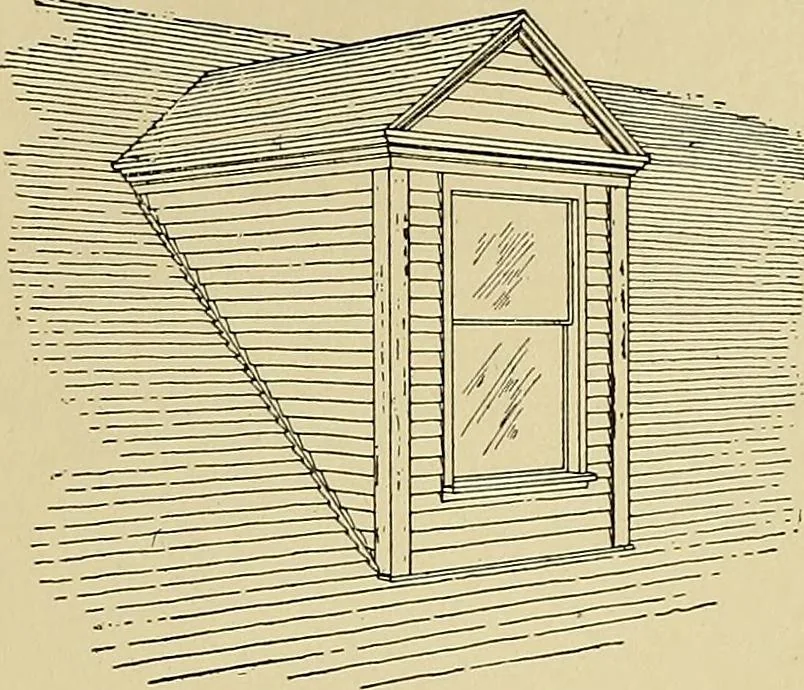

Fig. 187. Framing forMansard Roof This member shouldwhich is usual onmansard roofs is obtained by the use of the furring piece E. Thepiece E is nailed to the upright member B at the top, and at the 141 130 CARPENTRY … Fig. 188. One Form of Dormer Window bottom it is secured to the lookout F, which also forms a support forthe projecting cornice. The floor joist G is supported on a ledgerboard H, or it may rest directly on the plate A. The piece of stud-ding I is merely a furring studto form the wall of the…
