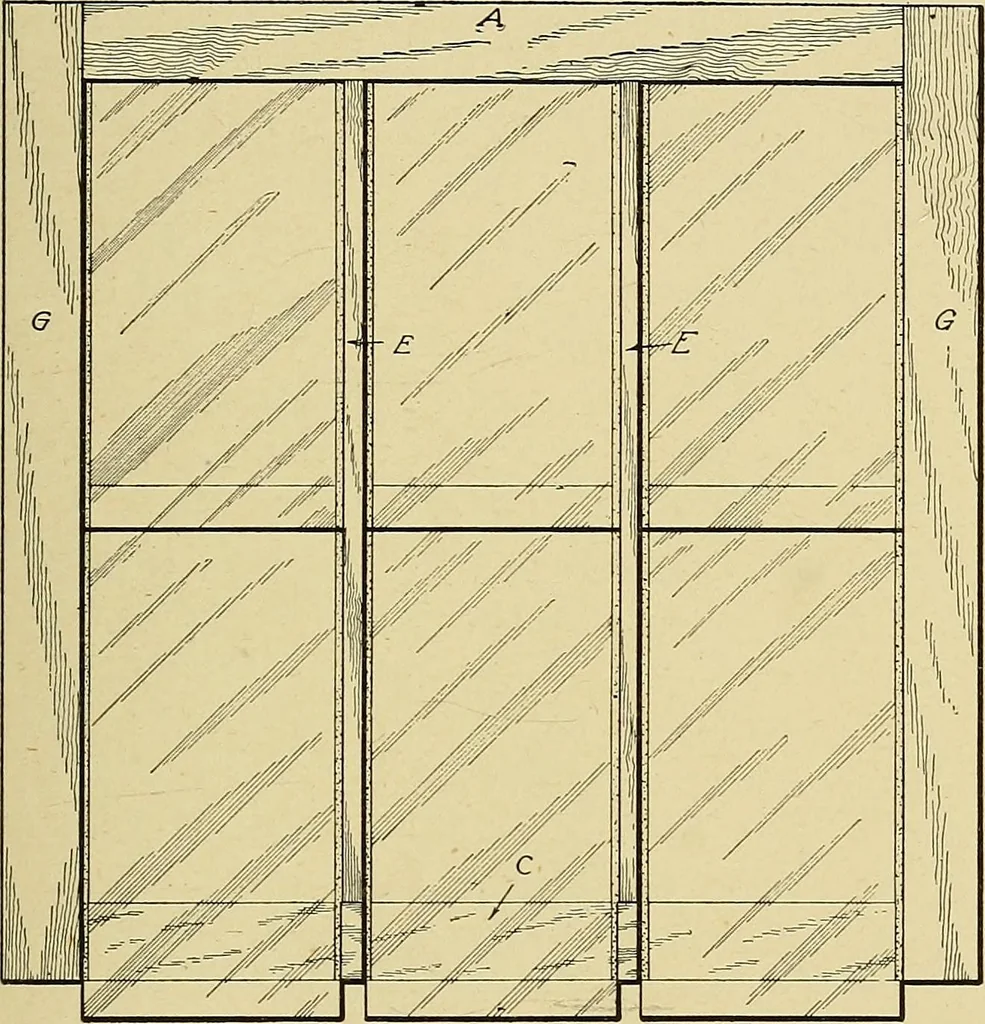

) < a n oj 0) ^ Ul H » 43 CARPENTRY 207 tinued to the top of the pieces CC and down to the plaster hneinside under the roof so as to cover up all the joints. This sheath-ing may be V-jointed or beaded if desired. FF is furring on theunder sides of the rafters, and G is the plastering under the… … cf~ P-^^C Fig. 290. Plan and Section of Skylight Window or other roof covering all around the skylight, and is carried insideto form a little gutter around the inside of the skylight just under theglass as shown, in order to catch drippings from the glass. K isthe sash which holds the glass. It…
