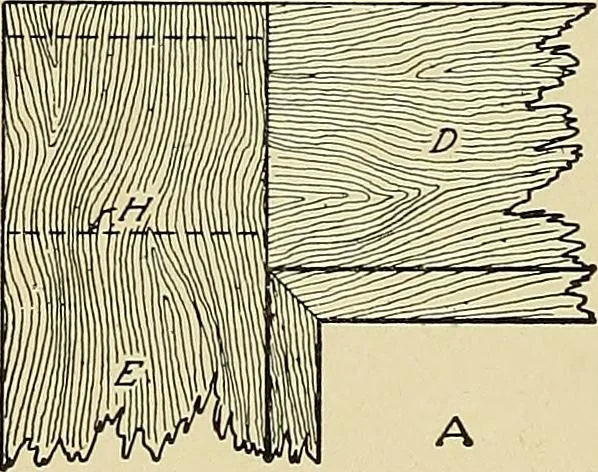

ortise-and-tenon joint, the mortise being in all casescut in the stiles and the tenon made onthe ends of the rails. This is shown inFig. 318 where at A is the joint betweenthe top rail and the stile, and at B thejoint between the meeting rail and thestile. D is the top rail and E is the stile,while…
