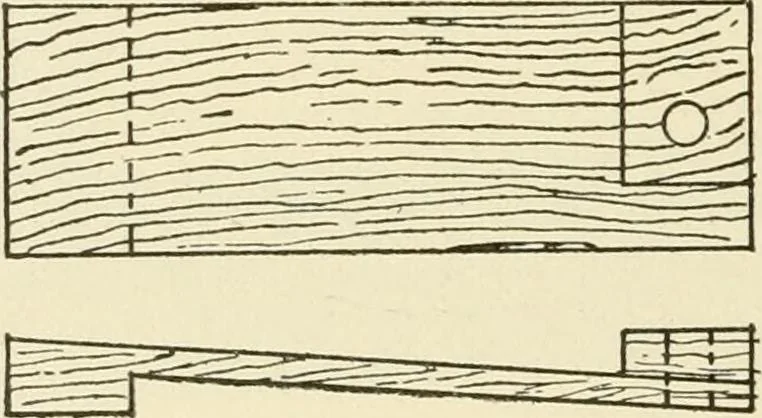

shop equipment. Thebcnch hOOR is a very useful part ofbench equipment, one form of which is shown at Fig.2; it should be twelve to fourteen inches long. Someform of saw-horse is also a necessary part of pattern shop … Fig. 2. equipment; a handy and easily built form is shown atFig. 3. Another almost indispensable article, somethinglike a bench in its nature, is what is known as a layingout tabic, or large drawing board, on which work can belaid out at full size when necessary. it should be built APPENDIX 169…
Patternmaking
