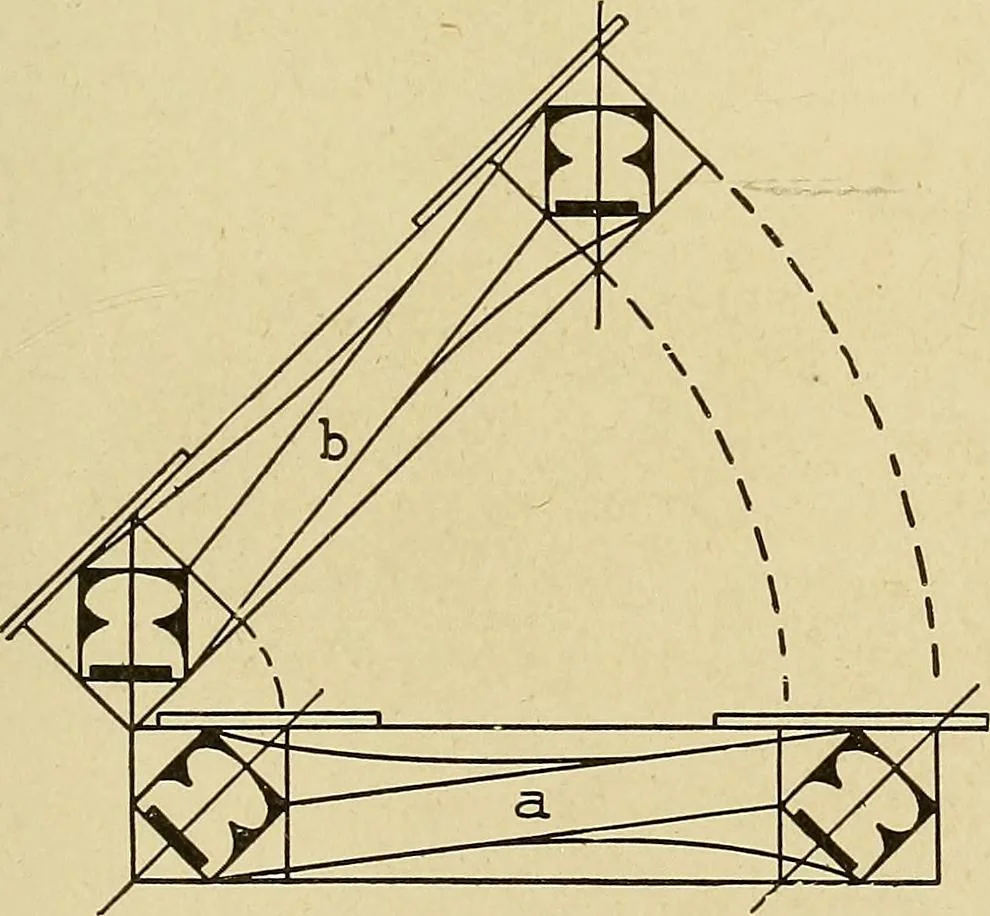

shown in Fig. 100. Measure the height of 5 risers, as shown inFig. 101, from the floor lineto 5; and draw the pitch ofthe flight adjoining thewreath, from 5 to the floorline. From the newel,draw the dotted line to w,square to the floor line;from w, draw the line w m,square to the pitch-line h.Now… … 821 58 STAIR-BUILDING w, at TO. Connect to to w as shown by the Hne a. The intersectionof this Hne with b determines the angle between the two tangents aand b of the face-mould, which gives them the correct direction asrequired on the face-mould for squaring the joints. The joint at to ismade…
