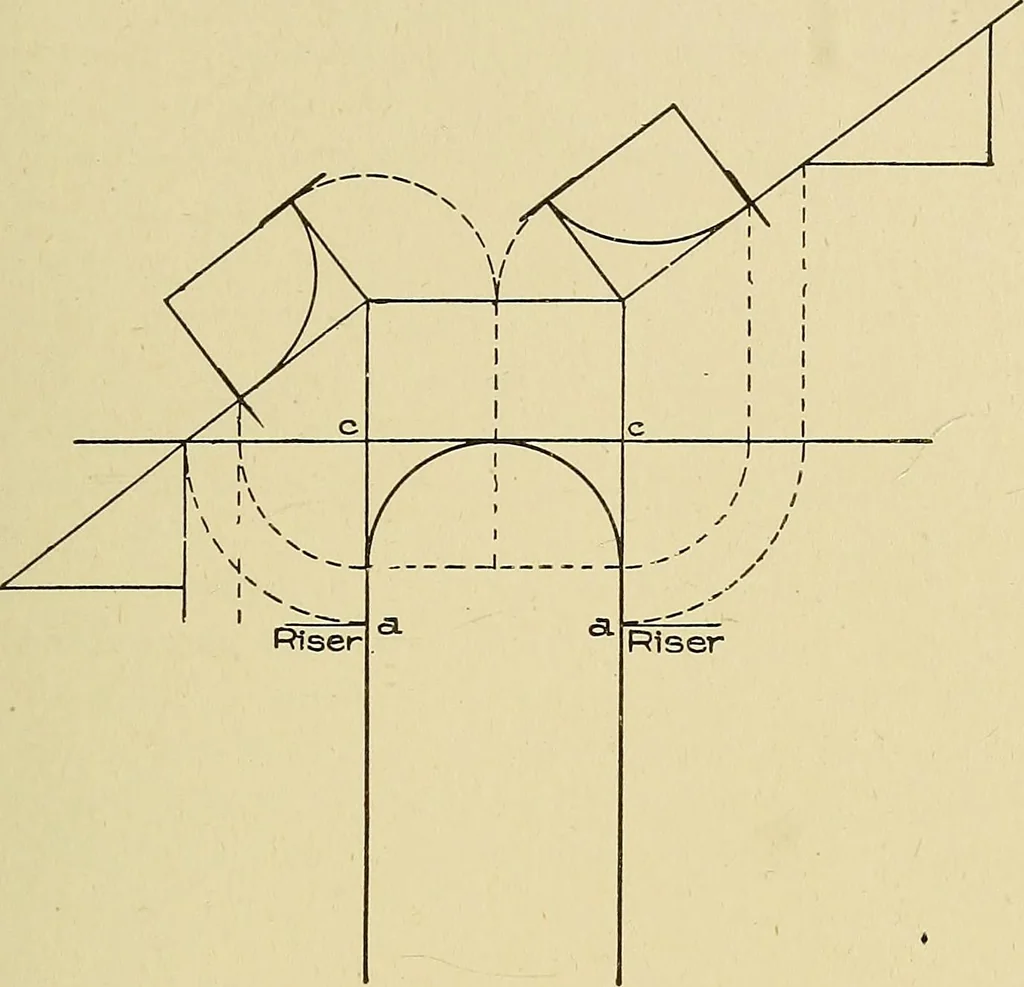

332 STAIR-BUILDING 69 of this circle indicates the width of the curve at this point. The widthat each end is determined by the bevels. The distance a h, as shown … Fig. 135. Arrangement of Risers around Well-Hole, with Risers SpacedFull Width of Tread. upon the long edge of the bevel, is equal to | the width of the mould, andis the hypotenuse of a right-angled triangle whose base is ^ the width ofthe rail. By placing this dimension on each side of n, as shown…
