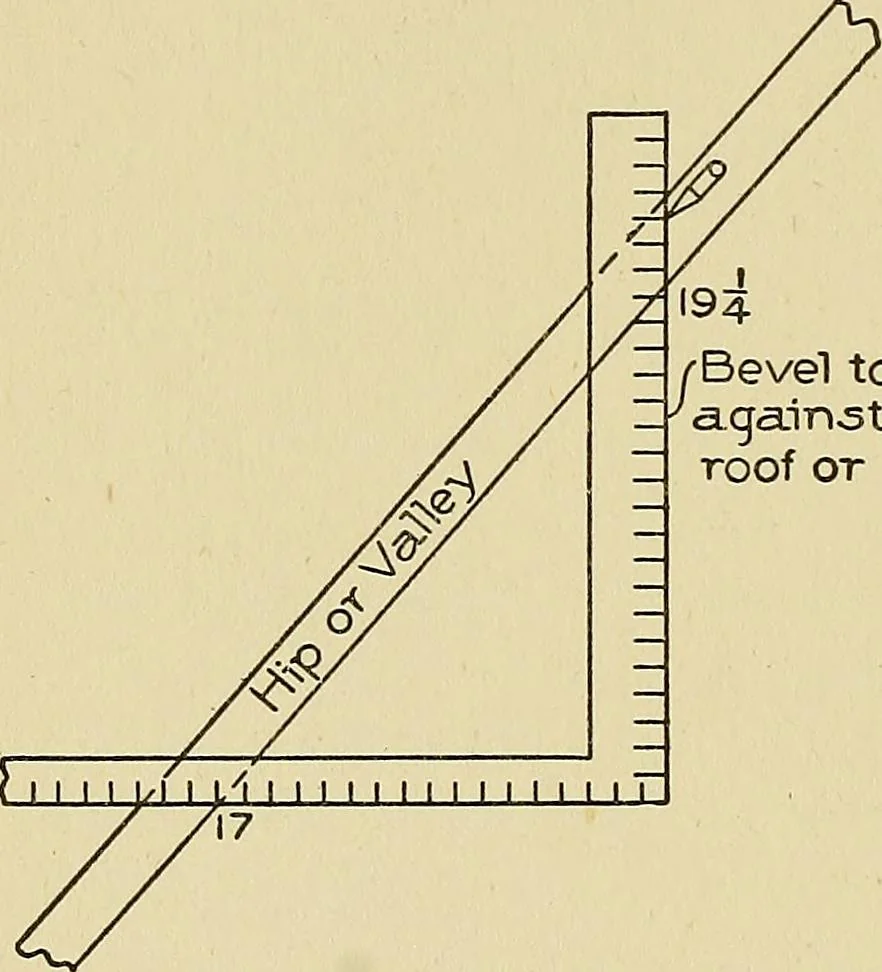

ill measure 5f inches.How to Treat the Heel Cut of Hips and Valleys. Having foundthe lengths of the hips and valleys to correspond to the common rafters,it will be necessary to find also the thickness of each above the plateto correspond to the thickness the common rafter will be above theplate. In… … I I I I 11 I I t I I I I I Fig. 24. Steel Square Applied to Finding Bevel for FittingTop of Hip or Valley to Ridge. 358 THE STEEL SQUARE 17 [i
