Hicks' builders' guide : comprising an easy, practical system of estimating material and labor for carpenters, contractors and builders .. (1910)
Hicks, Isaac Perry, 1856- · New York : David Williams Company · leaf 162

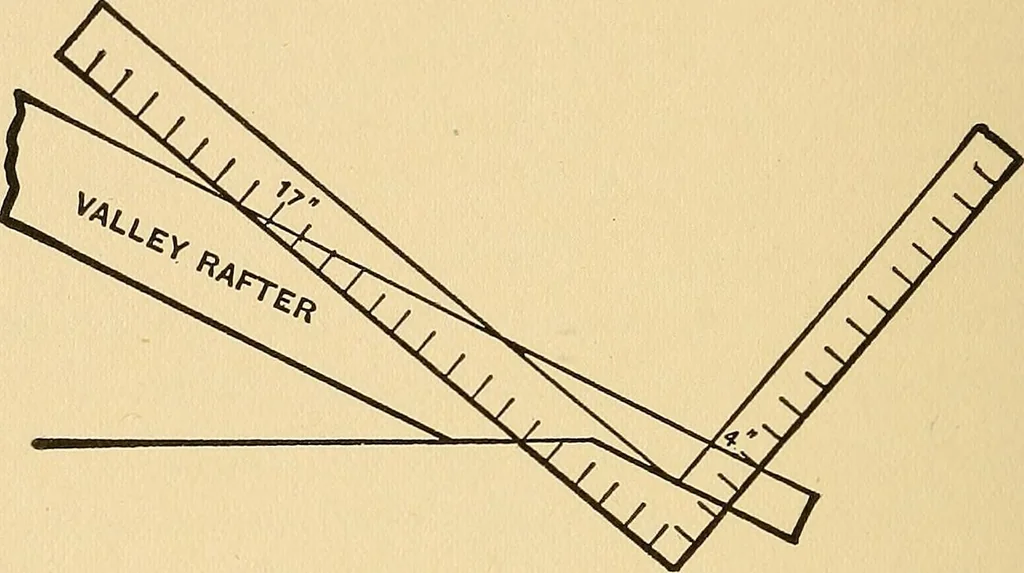

OR VALLEY. A question in roof framing which sometimes comesup in actual practice is how to cut the bevel on thelower end of a hip or valley corresponding to a square l6o THE builders GUIDE. cut of the common rafter. This is only used in cut-ting the ends of hip and valley rafters preparatoryto… … Fig. 114.—Manner of Applying the Steel Square to Obtain Bevelfor Hip or Valley Rafter. Take 17 inches on the blade of a square and one-halfthe rise of the common rafter to a foot run on thetongue, and the tongue gives the cut. For example, suppose I have a roof of one-thirdpitch. This being a rise…
Carpentry · Building
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
