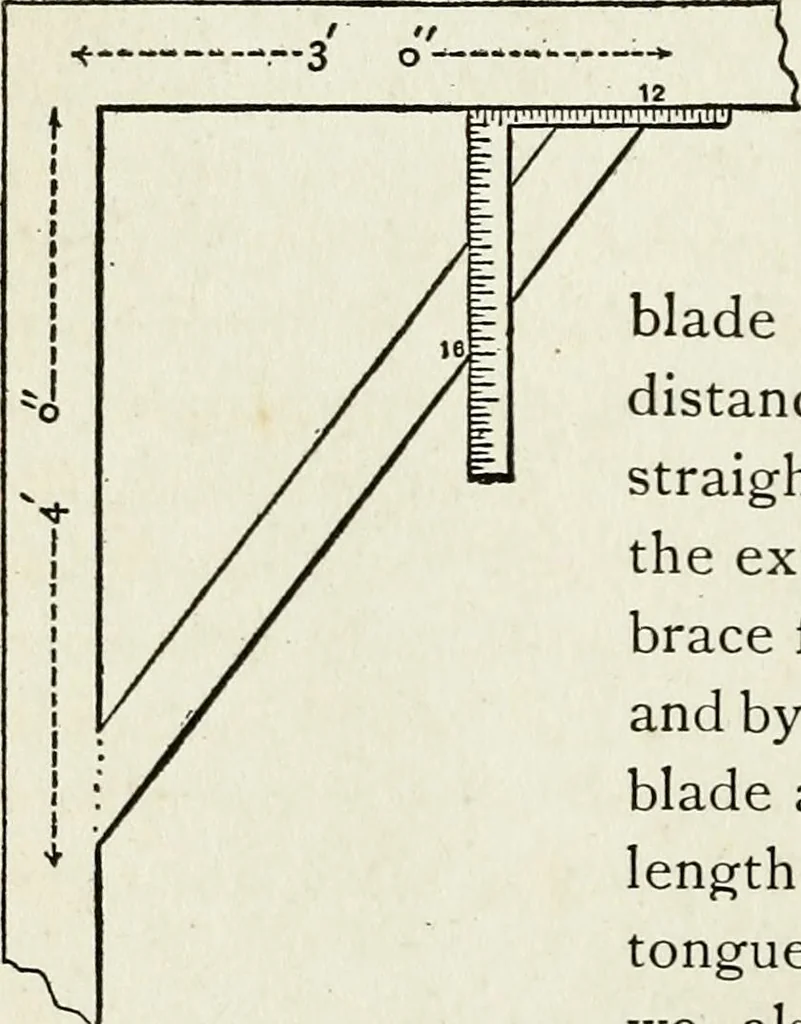

e-foot runon both post and beam, the matter is quite simple, for we cantake 12 inches onthe tongue and 12inches on theblade and transfer thisdistance three times on astraight line and we havethe extreme length of thebrace from point to point,and by marking along theblade at one end of thislength… … Fig 40. Showing Cuts andLength of an Irregu-lar Brace THE STEEL SQUARE 75 different than the rise, as in the example shownat Fig. 40, the square is applied in a somewhatdifferent manner. Here we have a run of threefeet and a rise of four feet. To get the properlength and bevels for a brace to fit…
