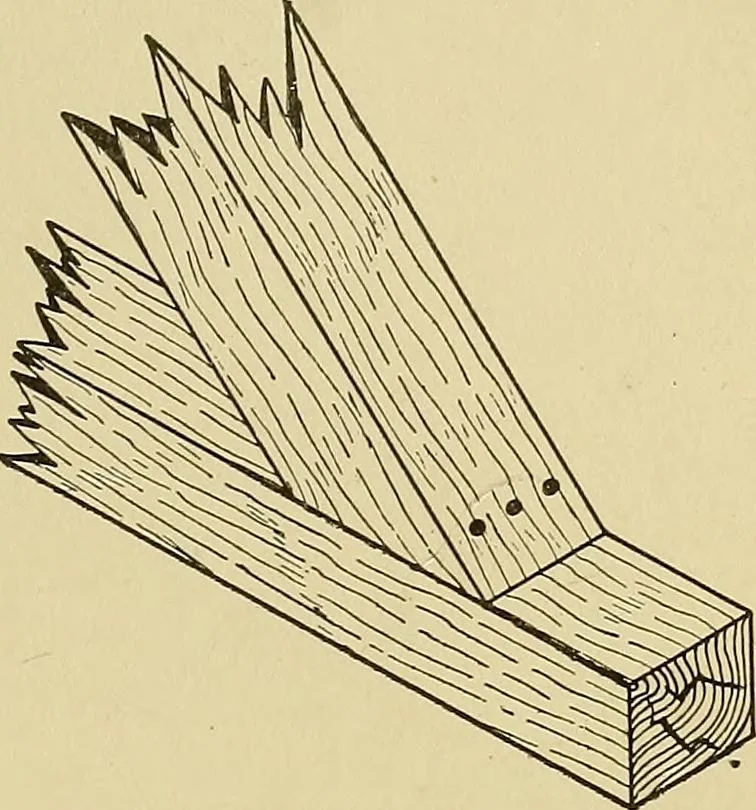

osely together, and are then nailed in place. Such a joint is called an oblique butt joint. The butt joint does not make a strong connection between the pieces, and should not be used if much strength is required. It depends entirely upon the nails for its strength, and these are very likely to… … Fig. 39. Oblique Butt Joint
