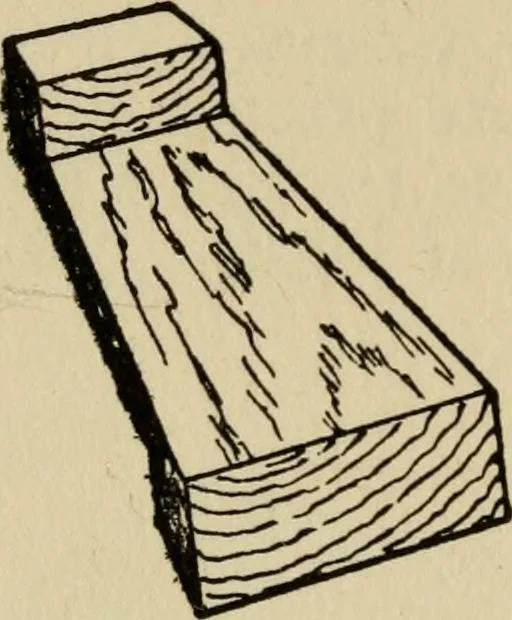

they are paraUel tothe sides of the wood and at right angles to the end ofthe wood as shown. Chisel Work.—After marking out, as shown at Fig. 314,place the wood on the bench and proceed to chop awaythe centre portion in the following manner. Hold thechisel on the bevel, as shown (Fig. 317), and cut… … c / ■^ ^- ] ■ ^ ■ ^ -* ■ ««> M - N. ^ I> 5 Fig. 315.—^DovetaDingTemplate. Fig. 316.—How to obtainCorrect Angles for Dove-tail Template.
