Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 116

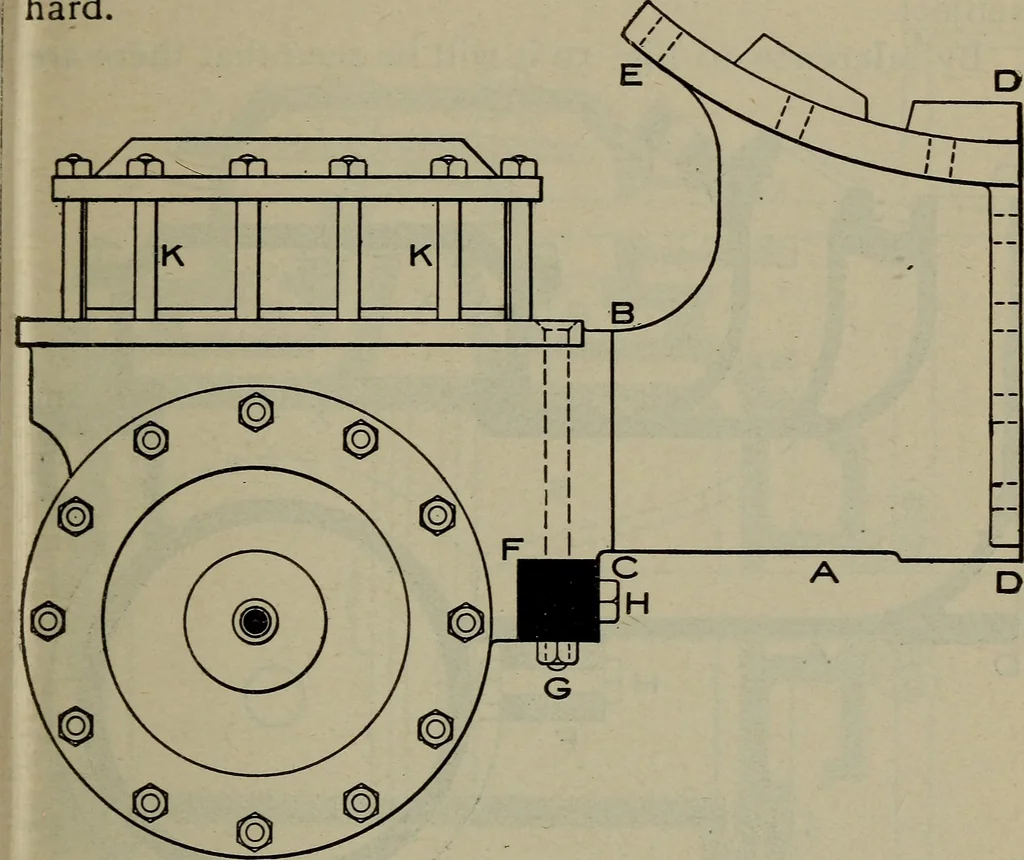

the valves, valve gear, etc., ofa simple engine. In Fig. 31, Chapter III, is given a sectional viewthrough the smoke-box, saddle plate and cylindercastings of a simple engine, having a flat or D slide VALVES AND VALVE GEAR 5 ; valve. Figs 49 and 50 show respectively a front endview of the cylinder,… … Figure 49 Cylinders and valve seats are generally cast togetheryith the bed plates or bed castings A A, Figs. 49 and50. Sometimes the bed castings are made separatefrom the cylinders and in one piece, and the cylindersare then bolted to it about at the line B C, Fig. 49.The usual practice, however,…
Locomotives
