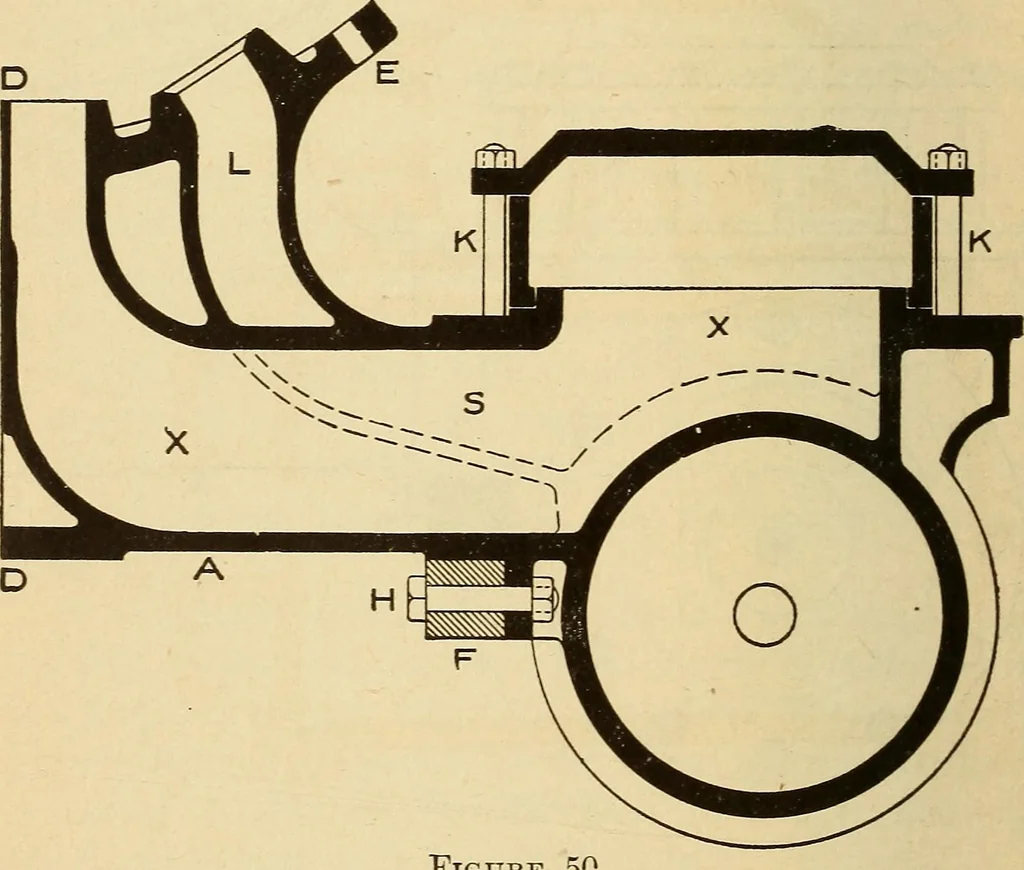

wever, is to cast one-half of theDed casting with each cylinder and then bolt the twohaWes together at the line D D, this being the centerline of the engine. ii6 LOCOMOTIVE ENGINEERING The bed castings are secured to the smoke-box bybolts through the flanges E E, and the cylinders arebolted to the… … Figure r> two passages in the bed casting leading to the cylin-der. The one L S is the live steam passage, and tothis is connected the steam pipe 84, Fig. 31, ChapterIII, and the other one ;r x is the exhaust passage lead-ing from the cylinder to the smoke-box where theexhaust nozzle is…
