Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 376

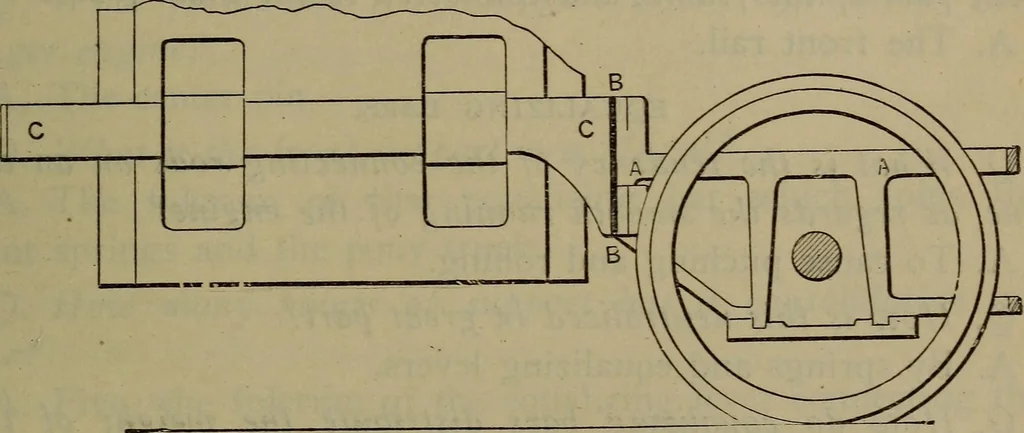

straight; but if tapered they THE FRAME. 369 will hold the frame together better; this being particularlytrue if they are long. Q. What different forms of pedestal legs are used? A. There is one type that has both jaws tapering on theinside, and another and later that has only one tapering,… … Fig 244. Frame for Narrow-gage Engines. A. That there is not enough room for the fire-box betweenthe frames; and it must be made very narrow, unless theframes are made with an off-set or cross plate projecting out-
Locomotives
