Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 637

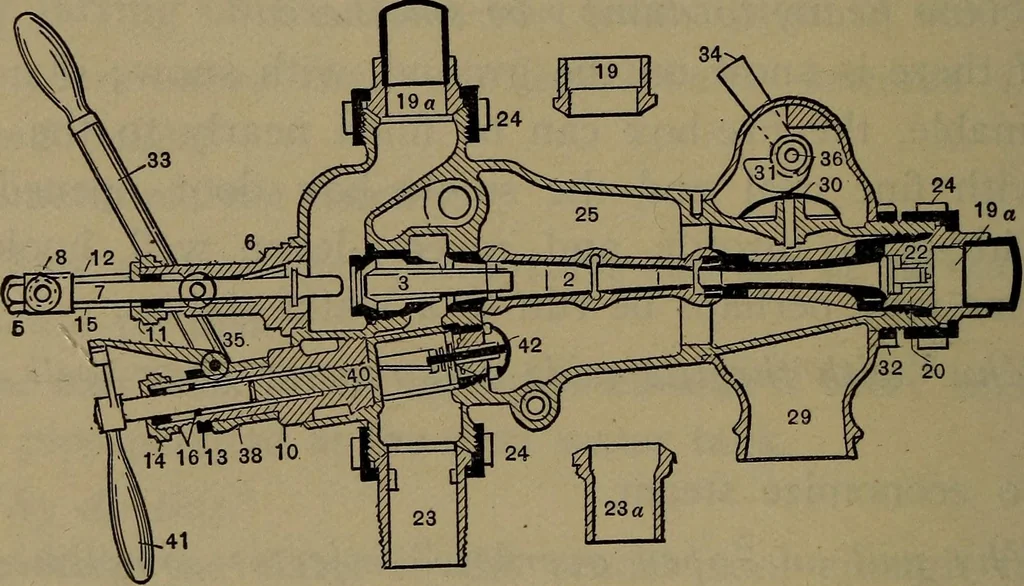

itis disagreeable wrork. Q. In case of stopped-up suction-pipe or strainer, what isto be done? A. The cam over the overflow valve closed and the starting-lever thrown over quickly. 622 LOCOMOTIVE CATECHISM. Q. What is to be done if the hose-lining is loose and stopsthe injector? A. The hose must be… … Fig. 395- Injector -William Sellers & Co. Q. Why set the lazy-cock at half capacity? A. The back pressure is greater in that position than if fullopen. Q. Hozv may the tubes be removed? A. Referring to Fig. 395, uncouple the feed pipe and swingit one side with a monkey-wrench on the lugs which…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
