Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 366

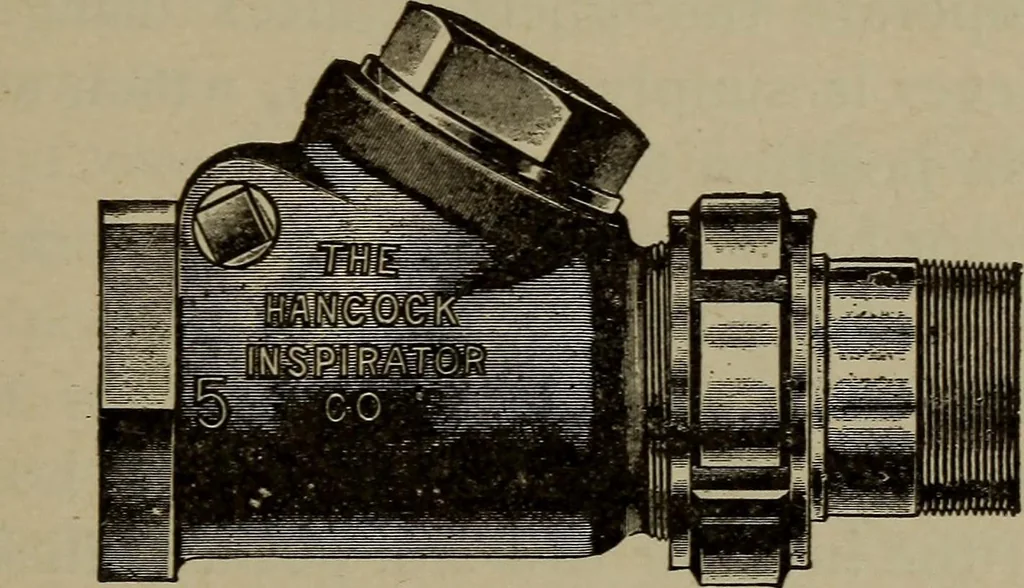

ve, part 215; and a further movement of the INJECTORS, STEAM GAUGES ETC. 361 lever, part 292, closes the final overthrow valvethereby turning the water from the overflow into theboiler, thus opening the check valve, part 210. Whenthe injector is working, the overflow valve is closed andheld to its… … Figure 165 Swing Intermediate Check Valves,Exterior View means of the regulating valve, part 301. When thisvalve is wide open, the lifting steam jet, part 224,receives a full amount of steam, which enables the lift-ing apparatus of the injector to lift the greatest quan-tity of water and deliver it…
Locomotives
