Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 378

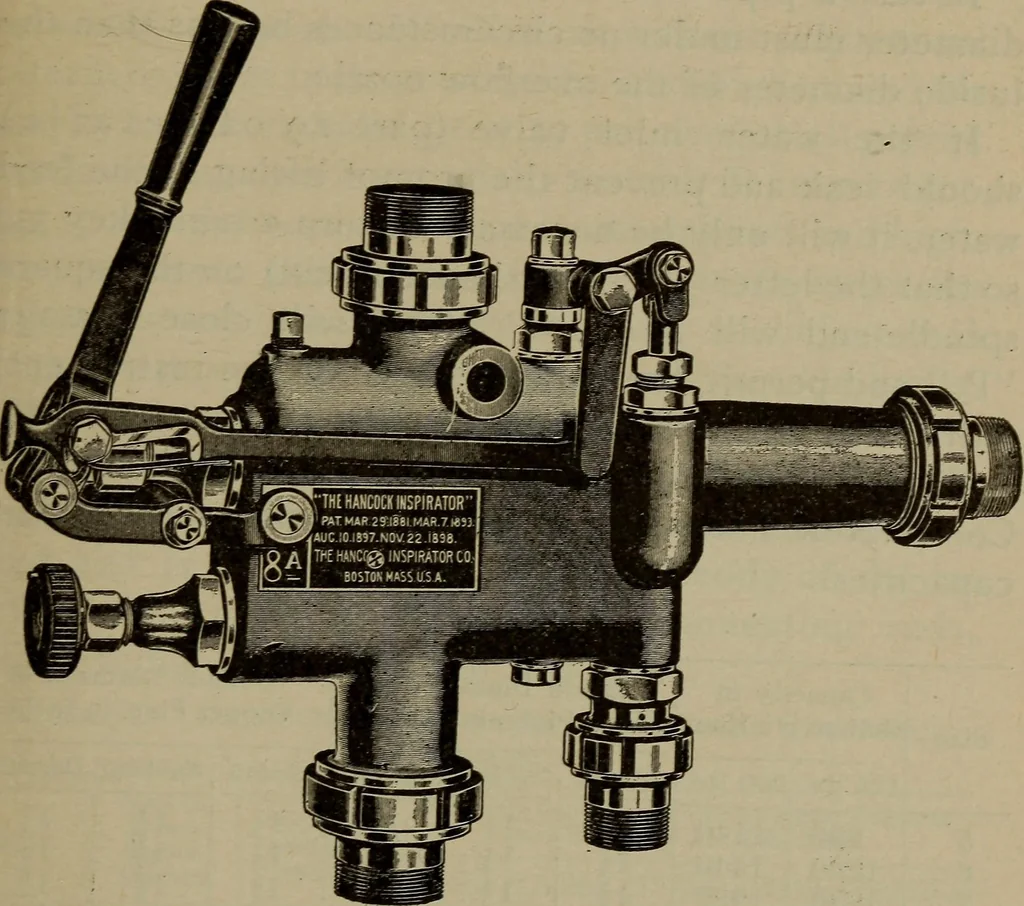

l-H!> O M o OHO •-5 «ft Eh HQO I | h3 INJECTORS, STEAM GAUGES, ETC. 373 it may be relied upon to start promptly after doingduty as a heater. The throttling capacity is fully 50 per cent of themaximum capacity under ordinary variations of liftand of feed water temperature. If it is desired that… … Figure 173The Hancock Inspirator, Sectional View rods, a quick motion screw attachment can be readilysubstituted in the place of the lever handle-. The construction of the injector is such that all itsinterior nozzles and other component parts are easilyaccessible for examination and repairs. 574…
Locomotives
