Locomotive text for engineers and firemen; a complete treatise on the engine, electric head-light and standard code of train rules (1908)
National correspondence school of railroading, Chicago. [from old catalog] · [Chicago] · leaf 64

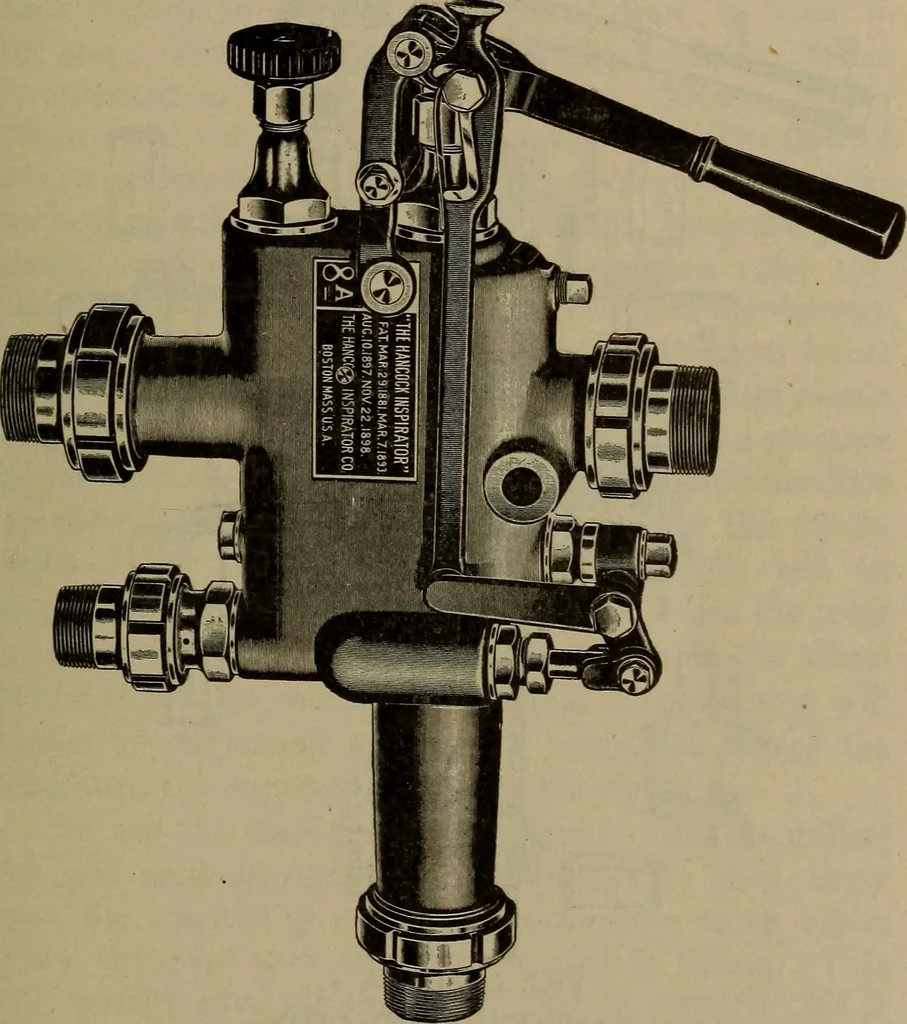

the same and it requires no ad-justment for variation of pressures. Fig. 1 of Plate 6shows an exterior view of the inspirator and Fig. 2 asectional view. LOCOMOTIVE INJECTORS. 53 The lifting mechanism consists of a steam nozzle anda combining tube. The throat of the combining tubebeing much larger… … Plate 6, Figure / HANCOCK INSPIRATOR delivery chamber of the lifter is increased, enabling thewater to enter the forcer combining tube against the in-creased pressure of steam from the forcing nozzle, thusenabling it to work from low pressure to high pressure 54 LOCOMOTIVE INJECTORS. without any…
Locomotives
