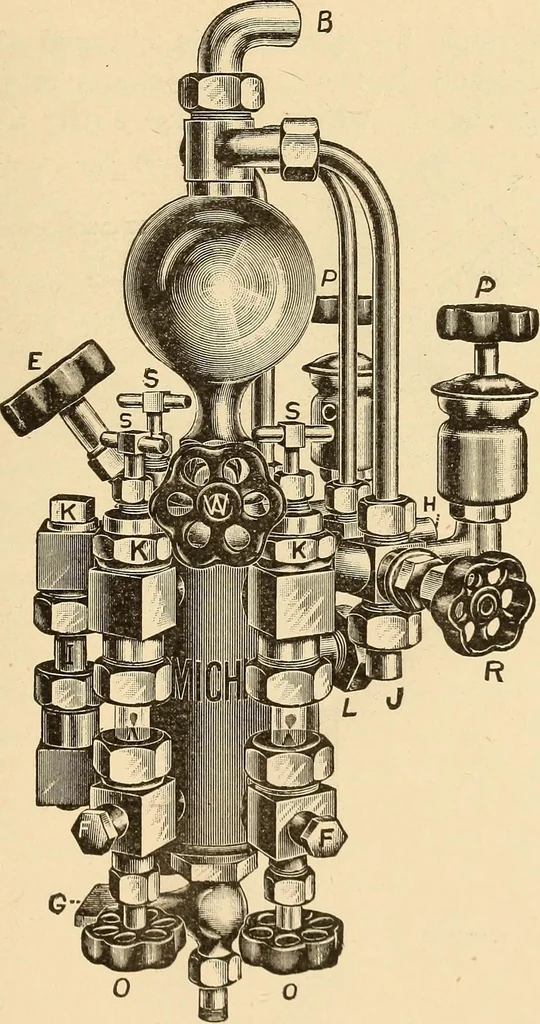

This hole must be %at the bottom Fig. 5.Steam Chest Oil Pipe Plug. MICHIGAN SIGHT-FEED LUBRICATOR. The manufacturers of this lubricator claim to over-come the hold-up of oil in the tallow pipes, and toinsure a delivery of oil direct to the steam chest withwide open throttle and any position of… … Fig. 1. Michigan Sight Food Lubricator. L—Lock Nut to secure Lubricator toAngle Iron. B—Union to connect Pipe for admis-sion of steam. J-J—Unions to connect Cylinder Feeds to Tallow Pipes. //—-Uuiou to connect Air Pump Feed. Af-*Stenin Valve for Boiler Pressure.(Not shown.) E—Filler Plug. W—Valve…
